Reworks

80 Intel Confidential User Guide

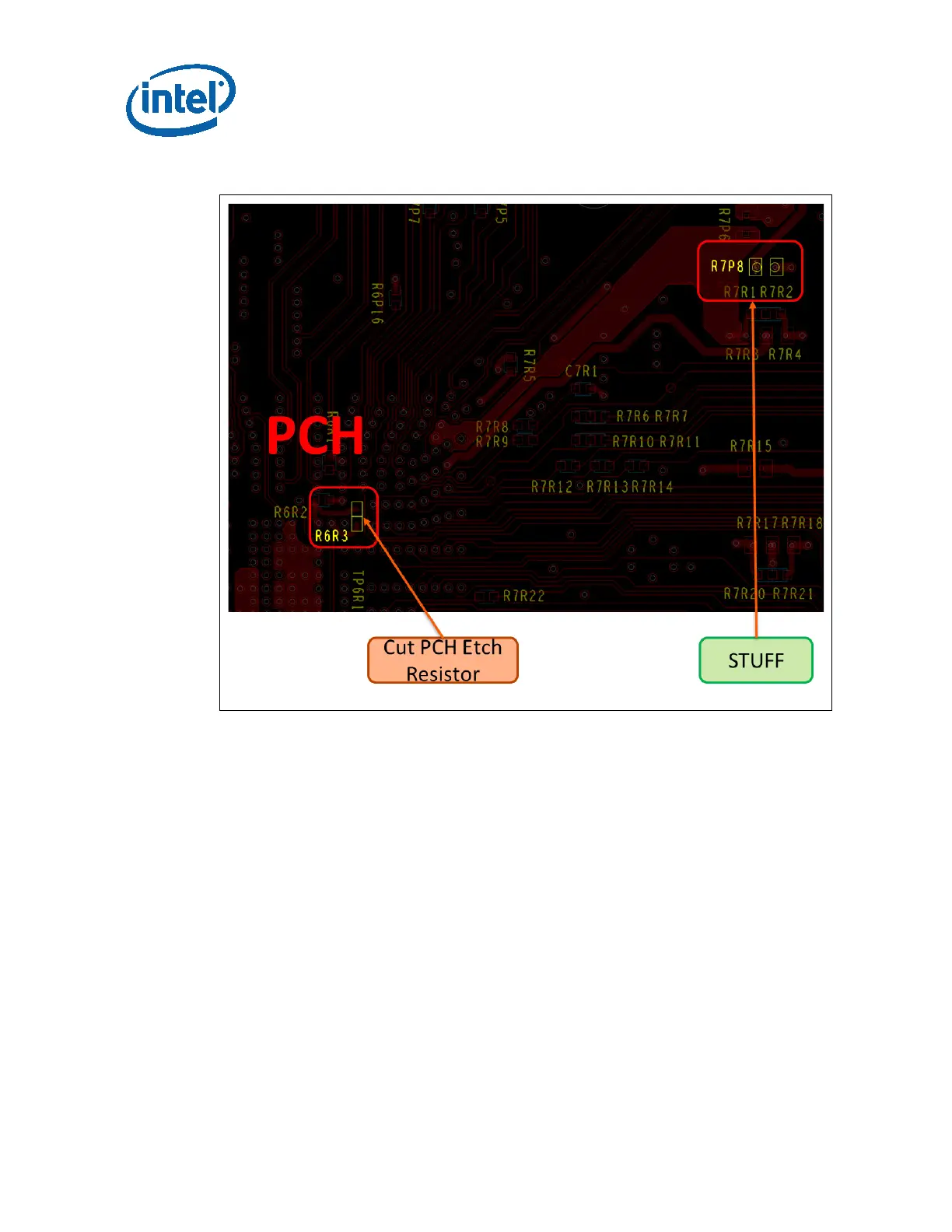

Figure 67. Layout Snapshot

8.2.12 Rework to Enable Audio Header for I2S Mode

Description: Rework to enable HDA lanes and MCLK on the audio header.

Impact of implementing the rework:

HDA lanes, MCLK are enabled to external

header. Onboard codec will not work.

Details: Resistor stuffing and Unstuffing.

Applicable To: H6AZ05, H6AZ08, H7AZ03, H7BZ03, H7AZ05, H7AZ08, H6AZ09,

H7AZ02, H7BZ02, H7AZ04, H8AZ02, H8AZ03, U17612, H7AZ07, H8AZ04, H9AZ04,

H7BZ06, H3BZ02, H6AZ04, H7AZ06, H9AZ02, I1AZ01, I2AZ02, I2AZ04, I3AZ03,

I3AZ05, I4BZ01, I5AZ01, I1AZ02, I3AZ04. This rework will not work in H3AZ01,

H3AZ02, H4BZ01, H5AZ02 and H3BZ02.
