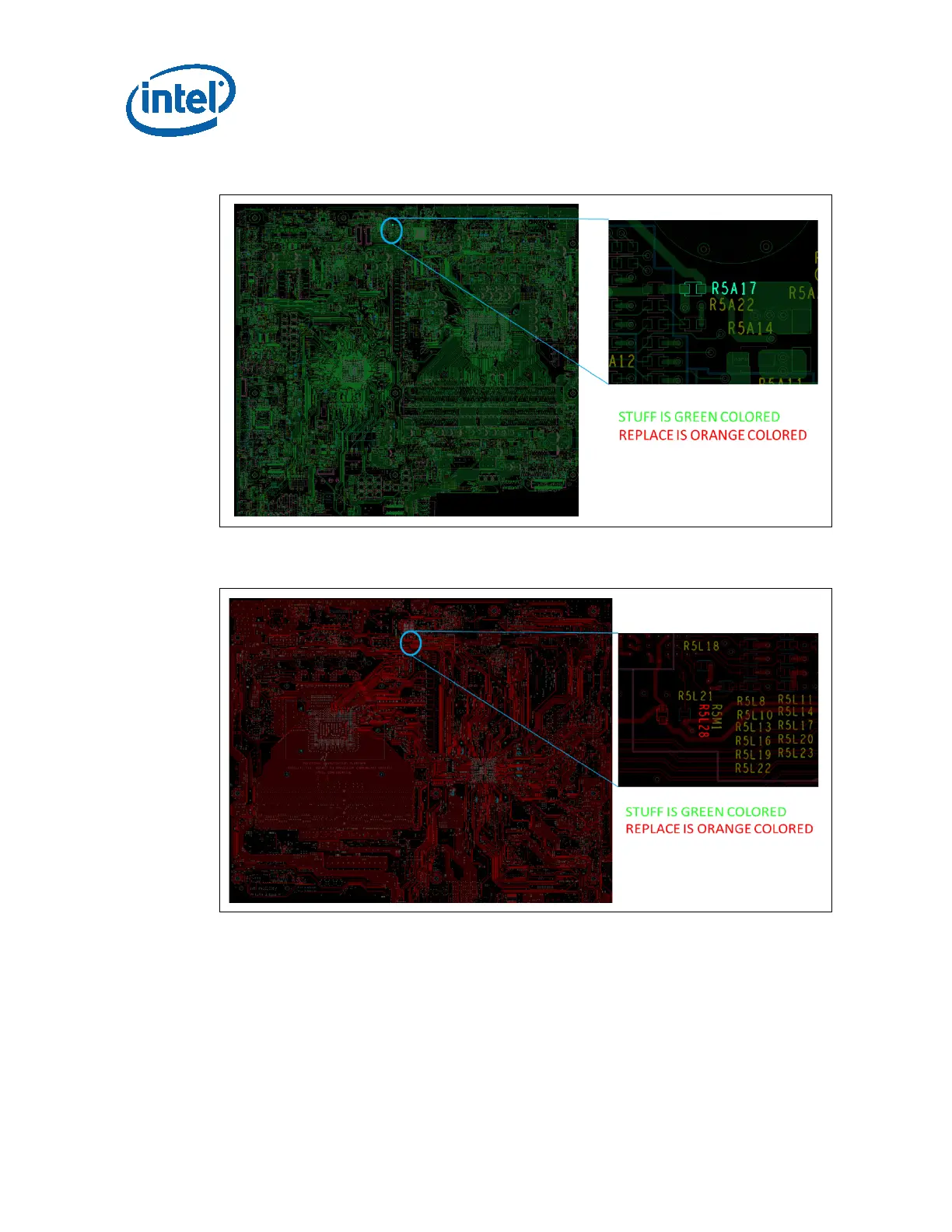

Figure 75. Layout Snapshot – Top Layer

Figure 76. Layout Snapshot – Bottom Layer

8.3.3 Rework to Keep USB Compliant on FP Discrete Type C

Description: This rework is keep the USB PDG compliant with the active switch

datasheet and Intel PDG.

Impact of implementing the rework: The resistor on Tx lanes between PCH and

type C active switch needs to be replaced with 0.1uf to keep it compliant with the

active switch’s recommendation
