Intel Coffee Lake S - Rework to Avoid Leakage on Cnvi and DMIC Modules; Figure 82. Layout Snapshot - Top Layer; Table 20. Rework Detail

97 pages

Save Page as PDF

To Next Page

To Previous Page

Reworks

User Guide Intel Confidential 91

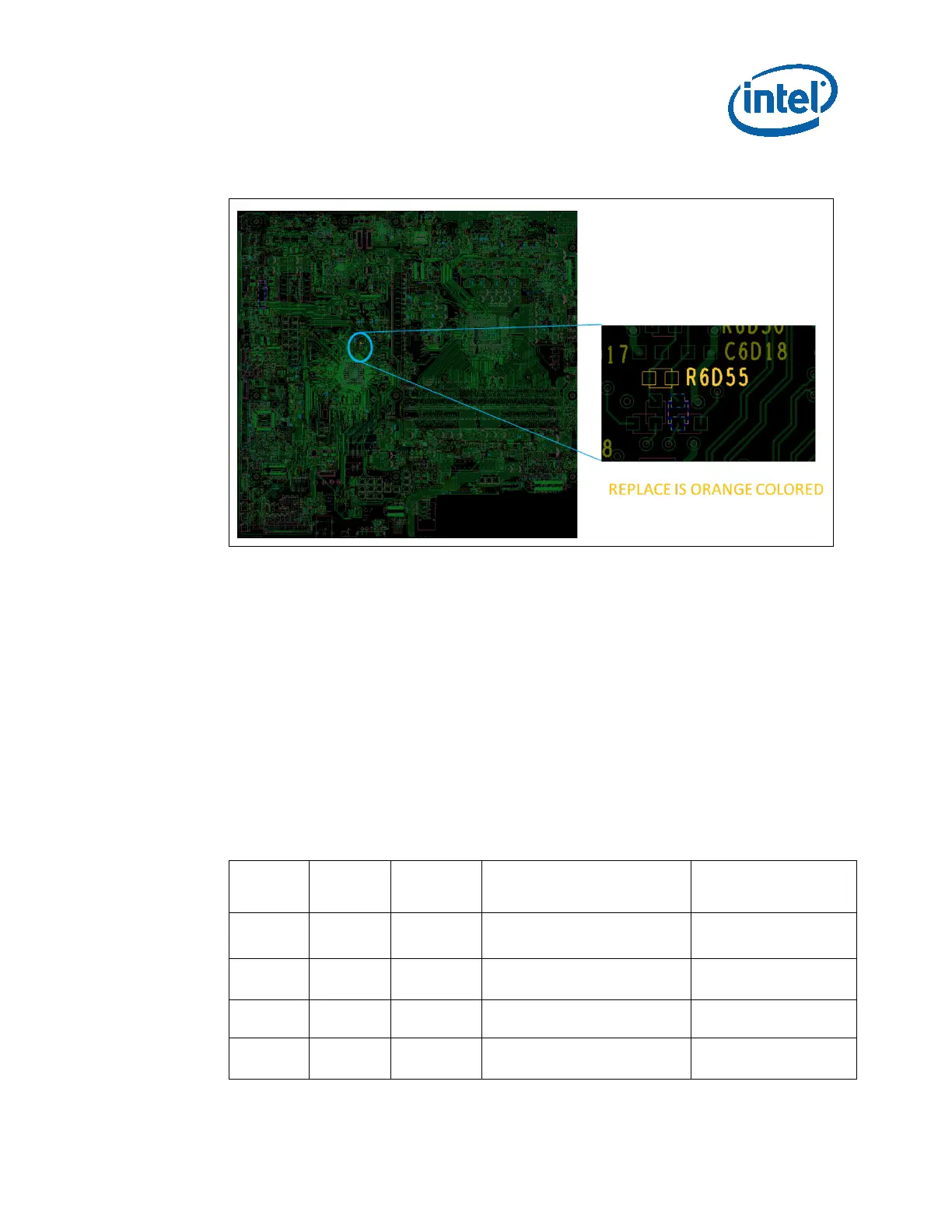

Figure 82. Layout Snapshot – Top Layer

8.3.6 Rework to Avoid Leakage on CNVi and DMIC Modules

Description: This rework is to avoid leakage on CNVi and DMIC modules on CFL-S

SODIMM RVP boards - This rework is to change the D block supply voltage from 3.3V

to 1.8V

Impact of implementing the rework: The current 1MOhm resistor is to be replaced

with 200kohm resistor

Details: SMT Resistor rework.

Applicable To: U17612, H7AZ07

Table 20. Rework Detail

Action Item RefDes Description of Existing

Part

Description of New

Part

Un-Stuff Resistor R7R17 0.022Ohm, 5%, 402, 1/16W

Stuff Resistor R7R18 0.022Ohm, 5%, 402,

1/16W

Un-Stuff Resistor R7R20 0Ohm, 1%, 402, 1/16W

Stuff Resistor R7R21 0Ohm, 1%, 402,

1/16W
