Reworks

User Guide Intel Confidential 95

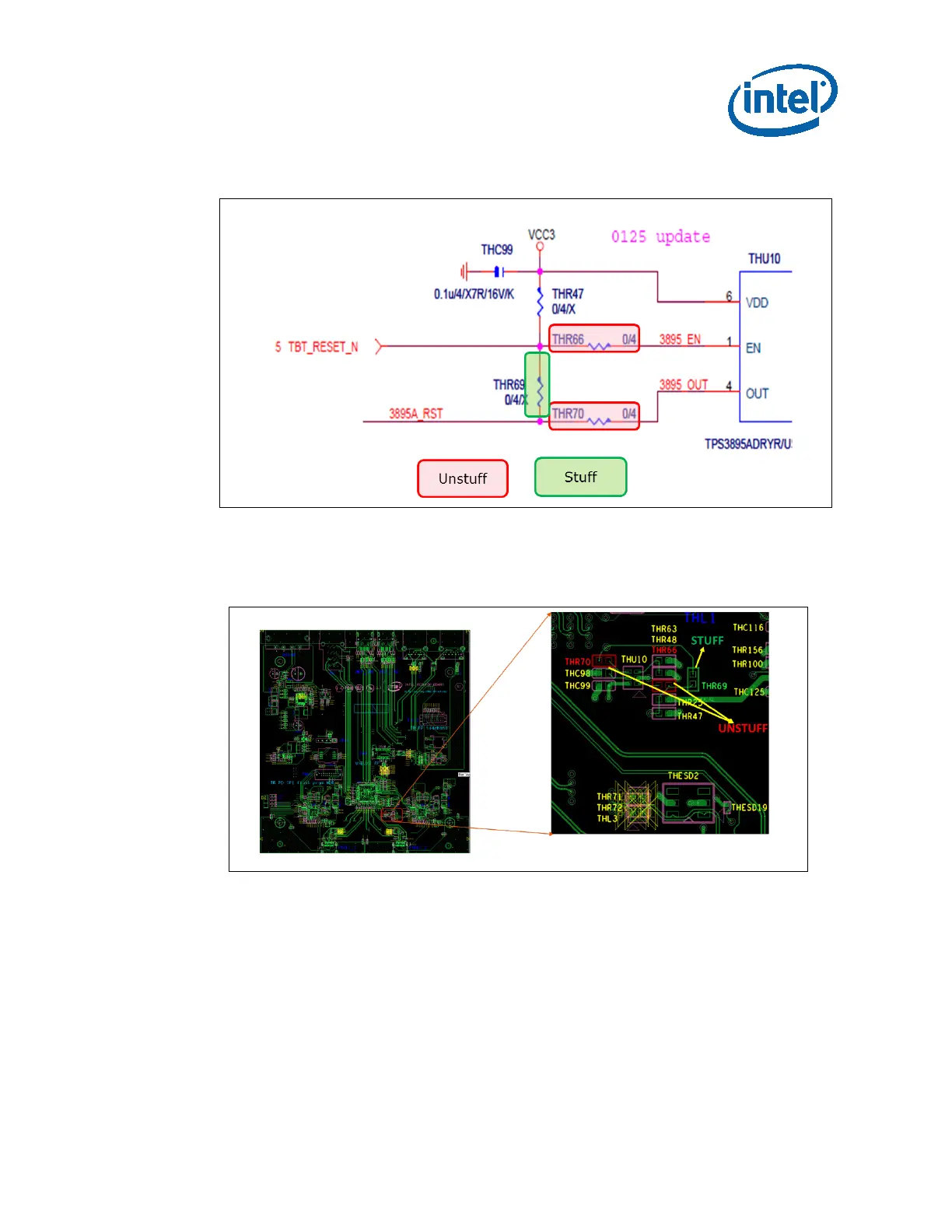

Figure 87. Schematic Snapshot

Figure 88. Layout Snapshot – Top Layer

8.4.3 Rework to Enable RTD3 Flow on Front Panel USBC Titan

Ridge AIC

Description: This rework is to change the pull up of CIO_PWR_EN GPIO from 3.3V

core rail to 3.3V Dual pull up.

Impact of implementing the rework: When trying to do Sx Wake with TBT device

connected, CAT error/Device getting lost behavior is observed without this rework

Details: SMD Resistor and blue wire rework.
