8.4.1 Rework to Enable Higher Current Profile on Front Panel
USB-C Titan Ridge AIC
Description: TR DP FP AIC supports higher power profile. There was an issue
identified when switching from 9V profile to 5V profile. This rework is to enable
smooth transition between power profiles.
Impact of implementing the rework:
AIC will not support 9V to 5V power profile
switching without restart of the system (RVP).
Details: SMD Resistor rework.
Applicable To: U17221, H6AZ03, H6AZ06, H7AZ01.
Table 21. Rework Detail
Action Item RefDes Description of Existing
Part
Description of New
Part
Replace Resistor BTR11 49.9K 0402 174K, 0402, 1%

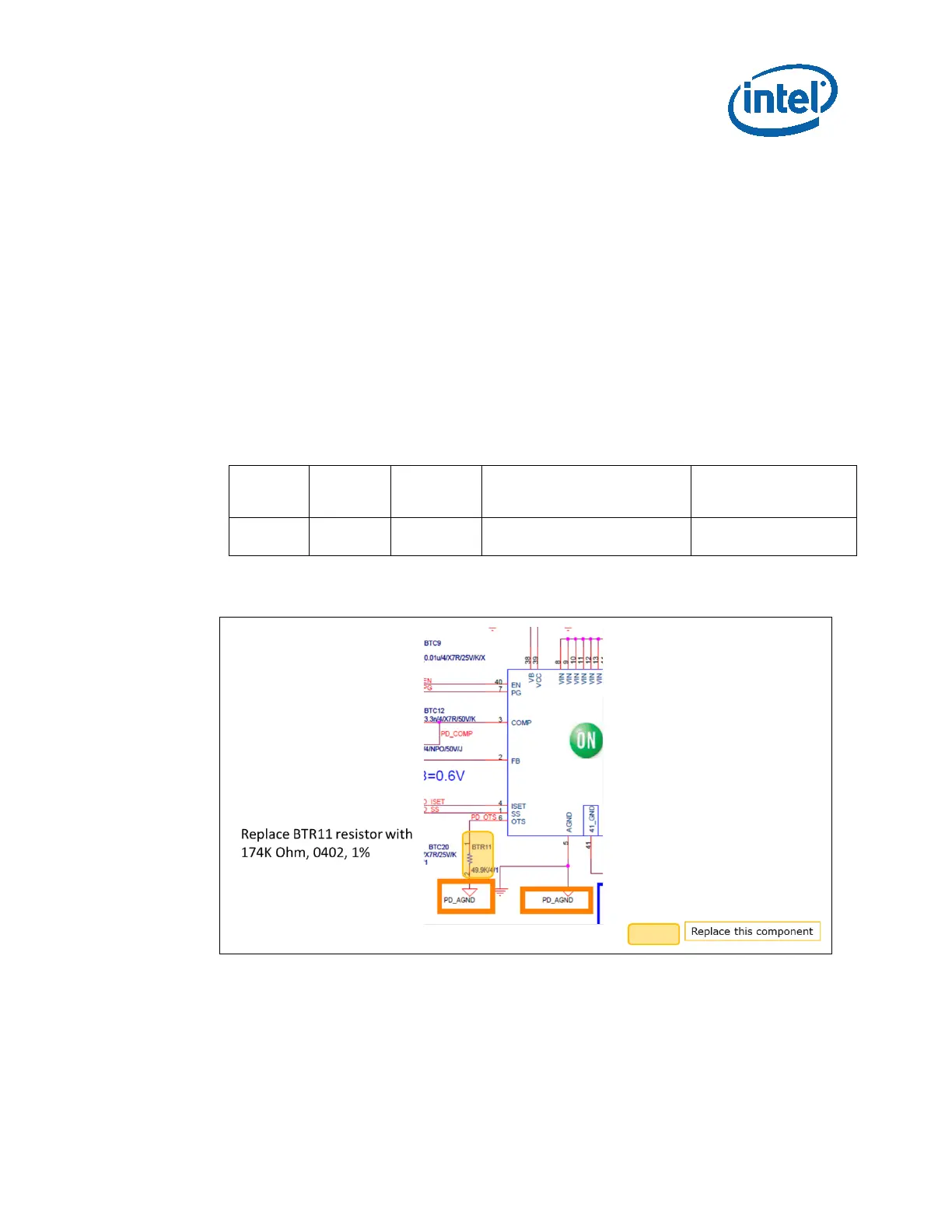

Figure 85. Schematic Snapshot
