Reworks
52 Intel Confidential User Guide

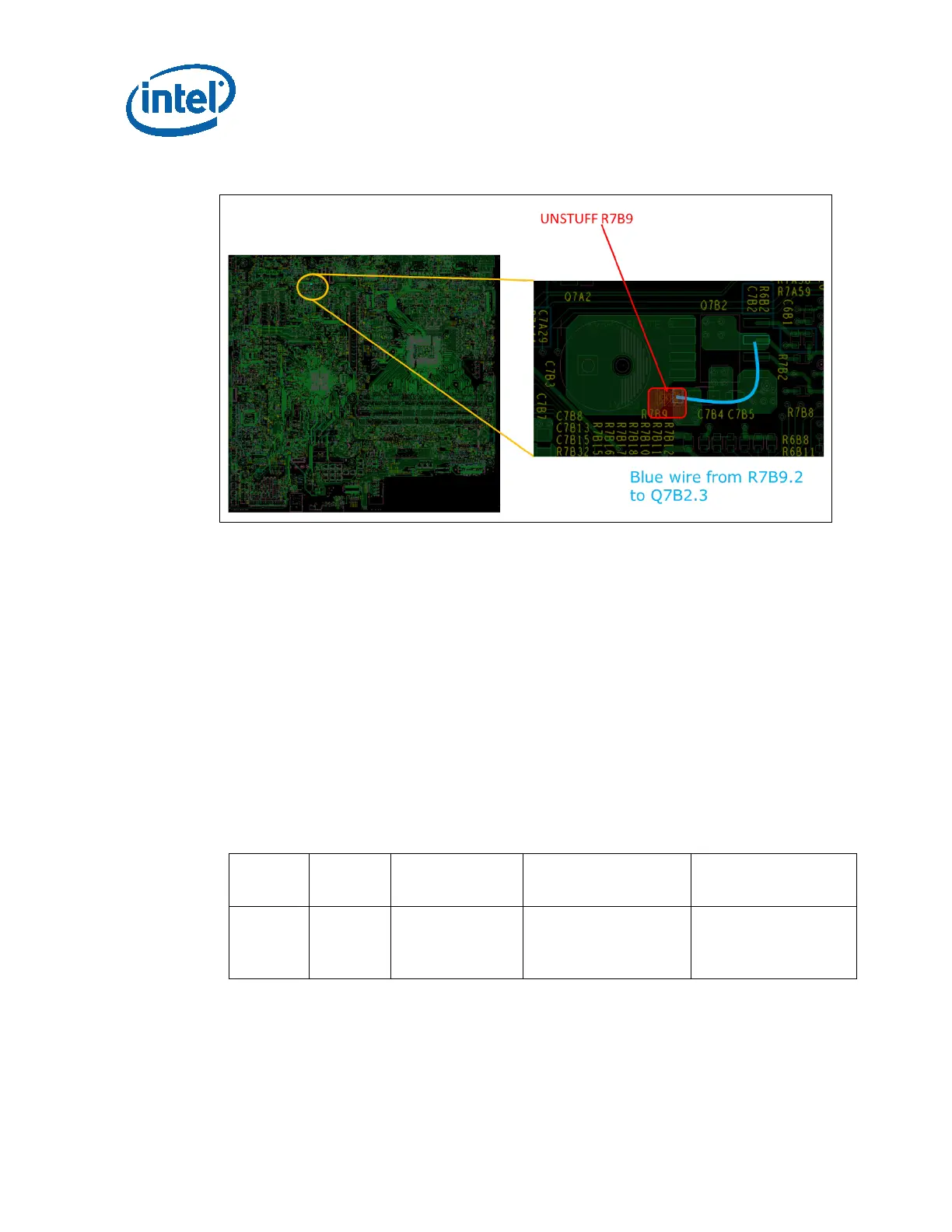

Figure 34. Layout Snapshot – Top Layer
8.2.4 Rework to Enable PCH XDP
Description: Rework to enable PCH XDP
Impact of implementing the rework:
M.2 SSD, USB Overcurrent [0:3], Titan ridge
Type C, ZPODD will not work after this rework
Details: Resistor unstuffing and Stuffing
Applicable To: H3AZ01, H3AZ02, H4BZ01, H5AZ02, H6AZ05, H6AZ08, H7AZ03,
H7BZ03, H7AZ05, H7AZ08, H6AZ09, H7AZ02, H7BZ02, H7AZ04, H8AZ02, H8AZ03,
U17612, H7AZ07, H8AZ04, H7BZ06, H3BZ02, H6AZ04, H7AZ06, H9AZ02, I1AZ01,
I2AZ02, I2AZ04, I1AZ02, I3AZ03, I3AZ05, I4BZ01, I5AZ01, I3AZ04.
Table 6. Rework Detail
Action Item RefDes Description of
Existing Part
Description of New
Part
Un-Stuff Resistor R7F13, R6T11,
R5J33, R6F28,
R6T10, R6F1,
R5J6, R5J10,
0 Ohm, 5%, 402 NA
