Intel EP80579 User Manual

Development Kit User’s Guide
October 2008 Order Number: 320067-002US
25
Technical Reference—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology
4.0 Technical Reference
This chapter provides hardware reference information for the Intel
®
EP80579
Development Board, including location of components, connector/header pinout
information, jumper settings and switch settings. Figure 8 shows the Intel
®
EP80579
Development Board components layout.
4.1 Board Components Layout
Figure 8 and Figure 9 show the front view and back view of the Intel
®
EP80579
Development Board. Figure 10 shows the external peripheral connectors. Table 9
identifies the components and connectors called out in Figure 8, Figure 9, and
Figure 10.

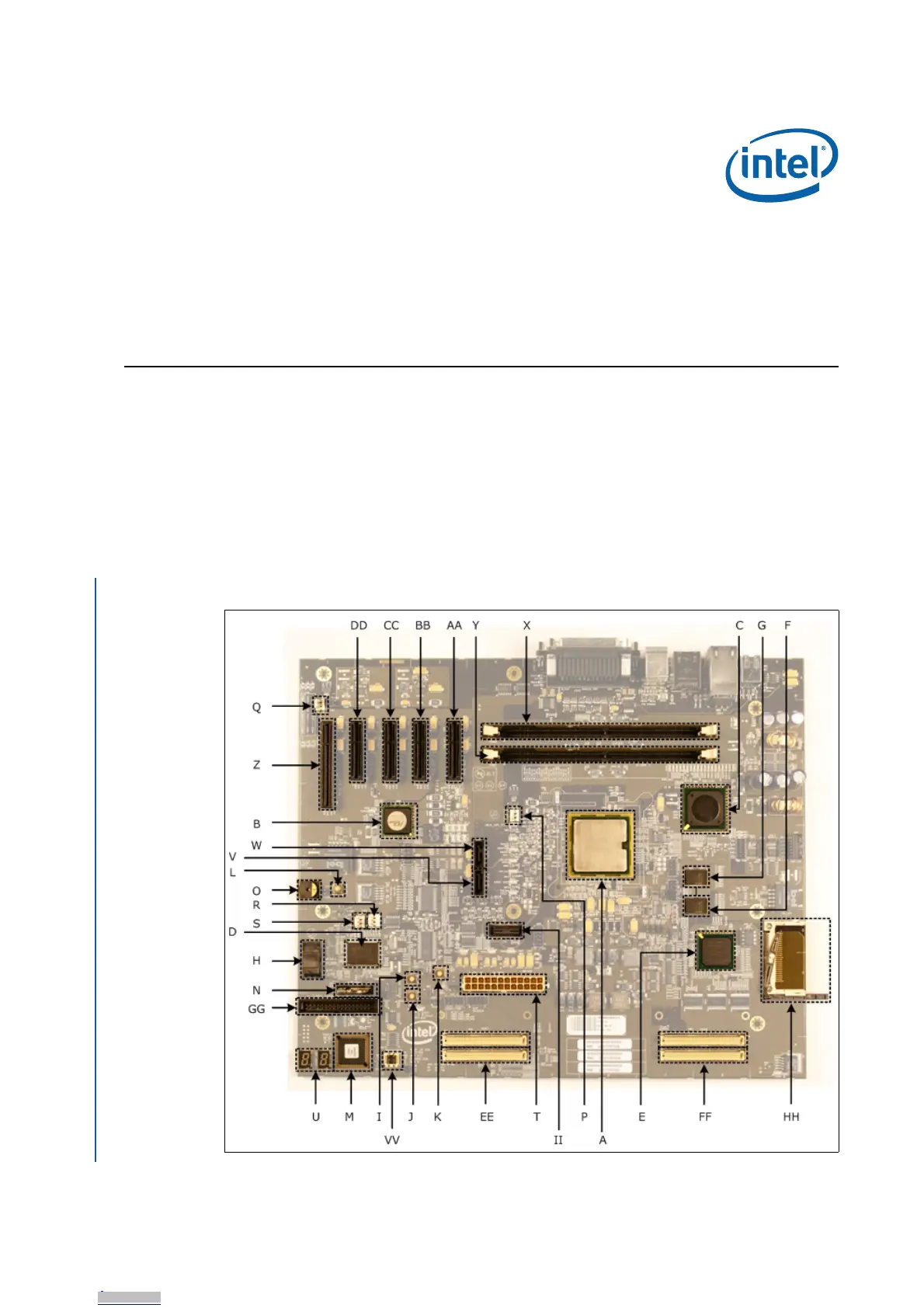

Figure 8. Front View of the Board Components
