Intel EP80579 User Manual

Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology—Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction and Insertion
Development Kit User’s Guide October 2008
78 Order Number: 320067-002US
8.3 Insertion Instructions — Intel
®
EP80579 Development
Board with Advanced Interconnects Interposer
Steps Figures

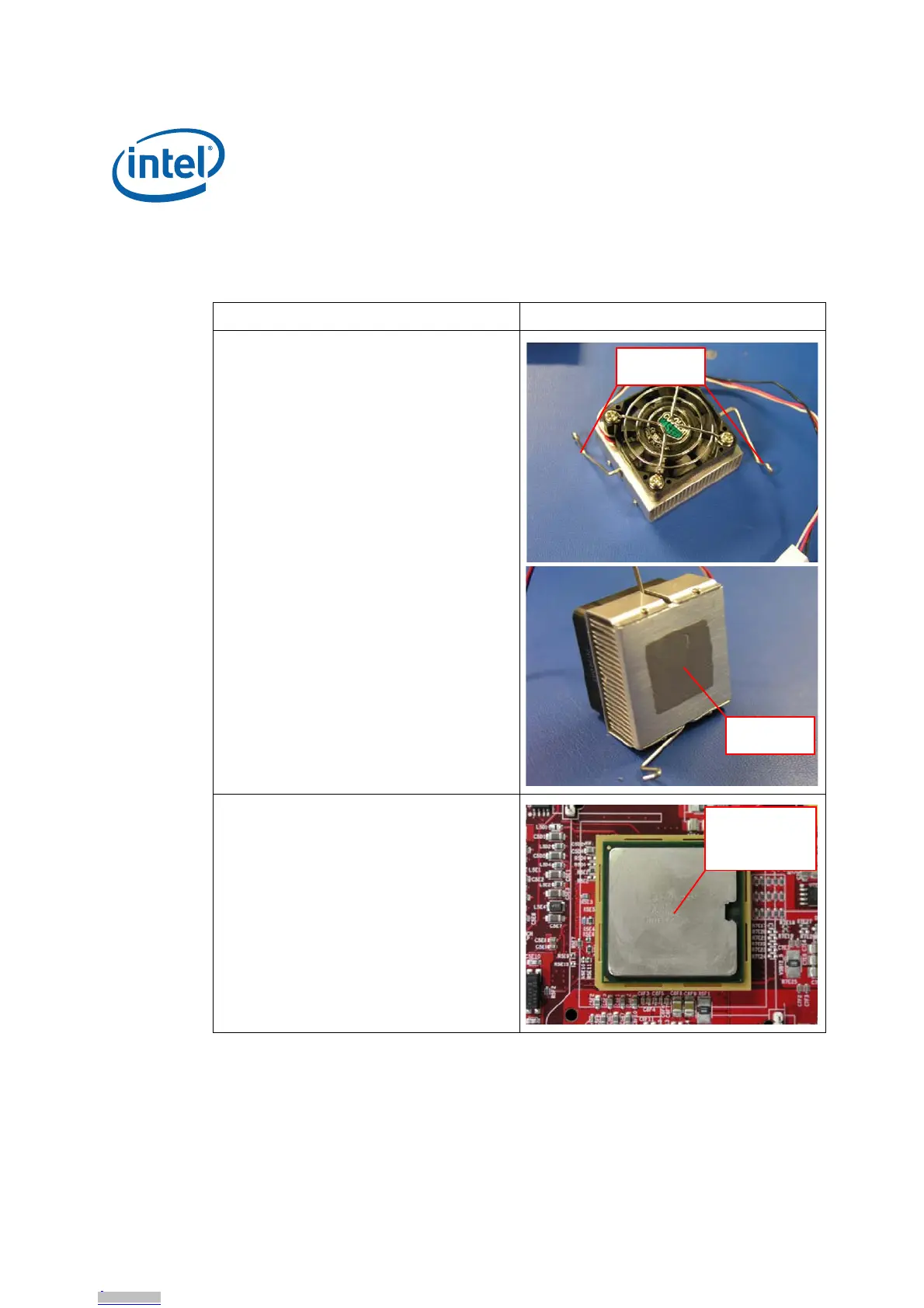

1. The figures at the right shows the heatsink
top and bottom view.
The thermal grease, shown in the bottom
view, is important to ensure heat transfer
from the integrated heat spreader (IHS) to
the heatsink.
2. Wipe the surface of the CPU integrated heat
spreader surface with a clean towel. Ensure
surface is free from debris.
Clip
Hooks
Thermal
Grease
IHS
(Integrated
Heat Spreader)
