Intel EP80579 User Manual

Development Kit User’s Guide
October 2008 Order Number: 320067-002US
61
Platform Setup—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology
Warning: Do not apply power to the Intel
®
EP80579 Development Board until the heatsink and
fans are correctly installed.
The processor fan must be connected to the CPU FAN connector, not to a chassis fan
connector (AUX/AUX0/AUX1). Connecting the processor fan to a chassis fan connector
may result in on-board component damage that may halt fan operation.
6.1.5 Installing the PCI Express Video Card
Install the PCIe x1 graphics adapter card into any one of the PCIe slots, 0-4. Figure 23
shows the graphics adapter card installed into slot 0. The video cable must connect to
the bottom port of the graphics adapter card.

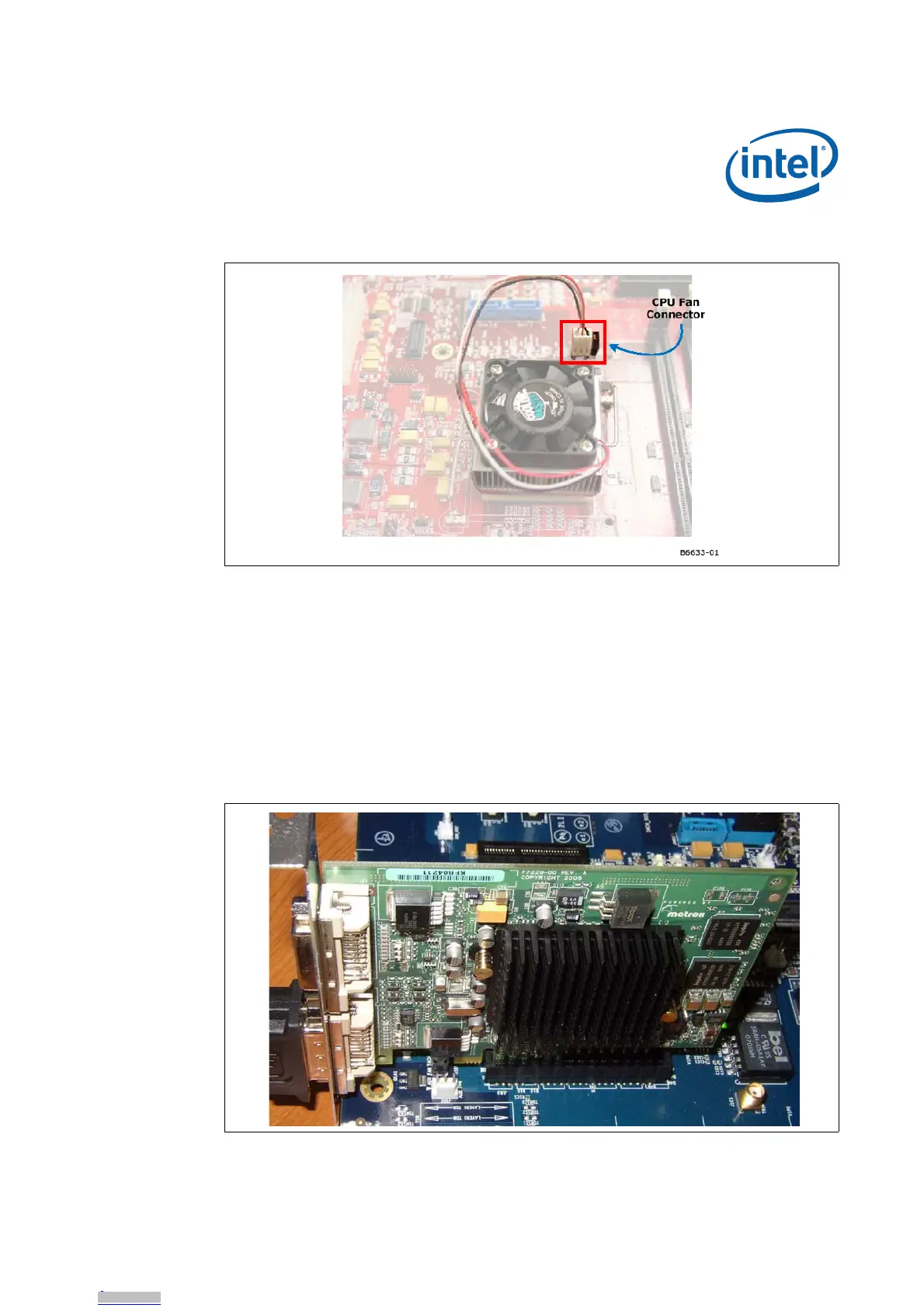

Figure 22. Location of CPU FAN Connector
Figure 23. Graphics Adapter Installation - PICe Slot 0
