Intel EP80579

Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology—Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction and Insertion
Development Kit User’s Guide October 2008
72 Order Number: 320067-002US
Interposer alignment features include posts at three corners.

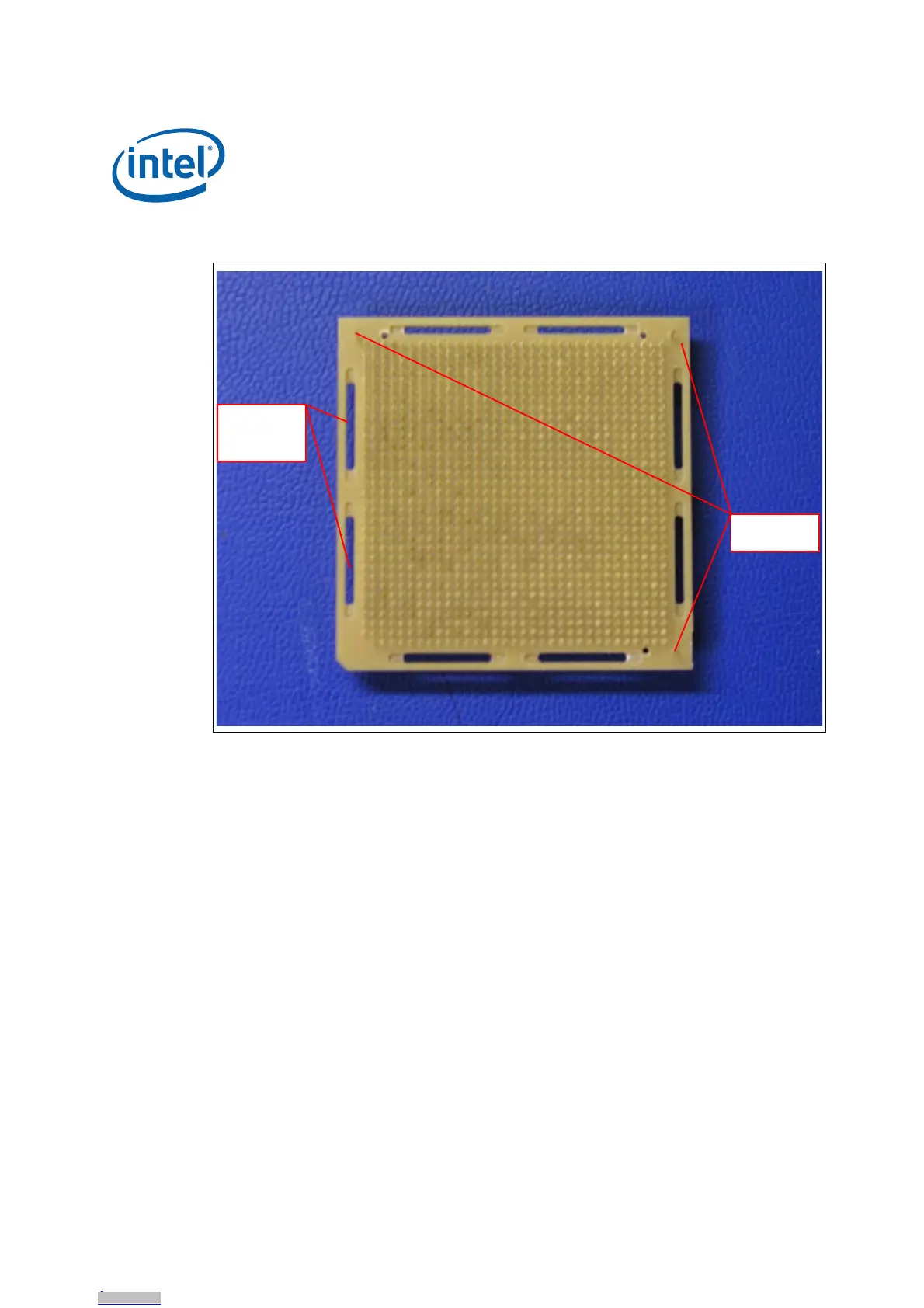

Figure 32. Advanced Interconnections 1088 BGA-to-PGA Interposer (pin side facing up)
Alignment
Features
Extraction
Tool Guide
Slots (x8)
