Intel EP80579 User Manual

Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology—Technical Reference
Development Kit User’s Guide October 2008
32 Order Number: 320067-002US

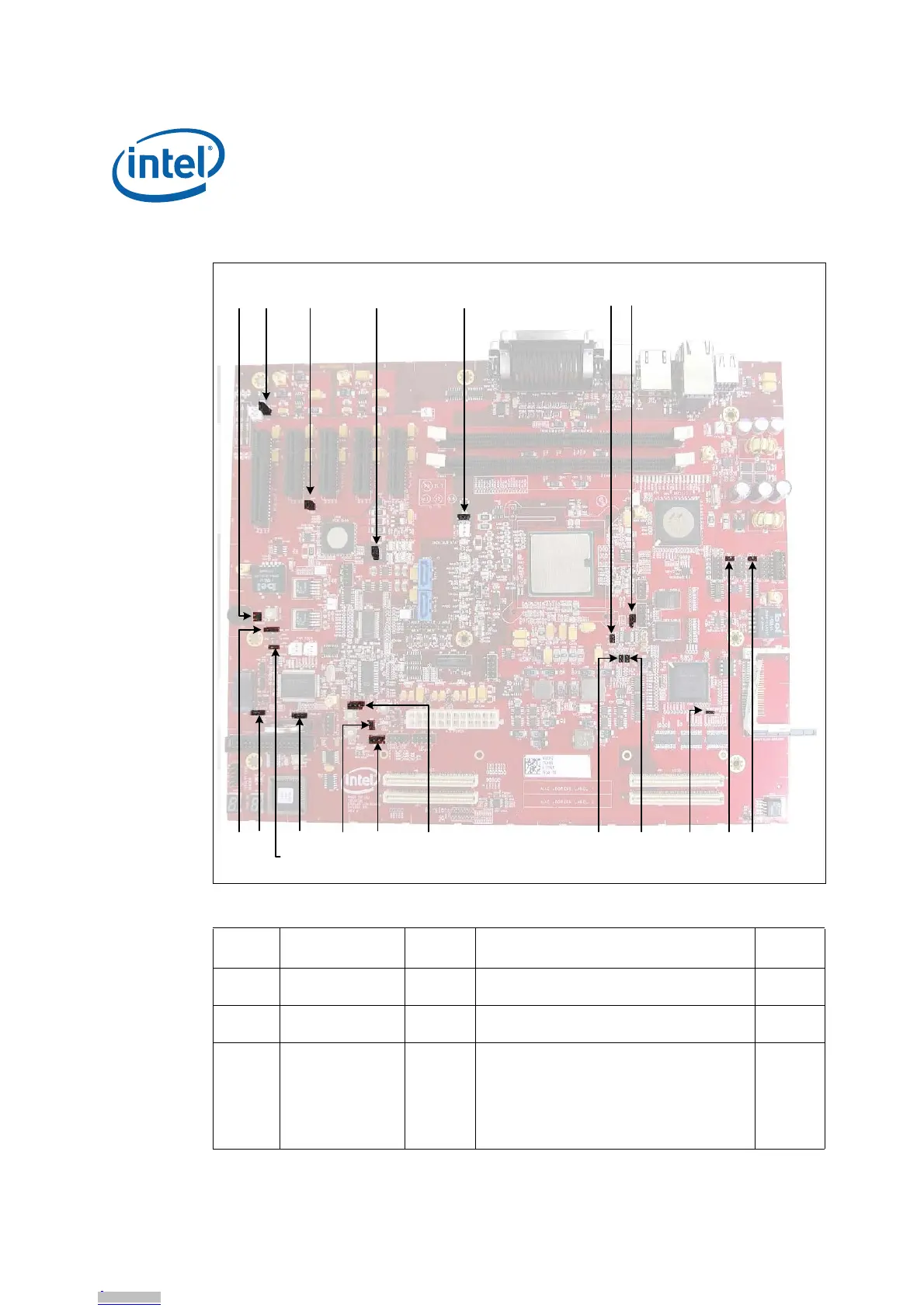

Figure 12. Jumper Block Locations
Table 13. Jumper Block Descriptions (Sheet 1 of 3)
Location Jumper Name Ref Des Description
Default
Position
AV_SEL J7F2
SKU and Voltage Selection:
See Table 10
2-3
BBSEL
J3H1,
J7G6
FSB frequency selection:
See Table 10
2-3
C
1.0V Override
(V_SEL)
J7G4
Intel Internal Test Only
1.0V override selection:
Short = Force IA core voltage to 1.0V
Note: R3U6 0 ohms resistor needs to be
removed.
Open = IA core voltage is determined based on
V_SEL signal and BSEL
Open
PN
M
H
B6603-03
B C RQLD
FO GE
I
J
SK
A
