Intel EP80579 User Manual

Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology—Platform Setup
Development Kit User’s Guide October 2008
64 Order Number: 320067-002US
6.1.10 Connecting the Power Cables
Use the following procedure to connect the power cables:
1. The board supports the use of ATX12V power supplies with either 2x10 or 2x12
main power cables.
2. Plug the main connector into the Intel
®
EP80579 Development Board. Ensure that
the plug clip lines up with the clip lock and the connector pins easily fit into their
appropriate slots. When using a power supply with a 2x12 main power cable,
attach the cable to the right-most part of the main power connector, leaving pins
11, 12, 23, and 24 unconnected, as shown in Figure 27.
3. Plug in the power connectors from each of the SATA drives and disk drives.
6.1.11 Stand-alone Target Platform
Figure 28 shows the system setup when the Intel
®
EP80579 Development Board is
configured as a stand-alone target platform.

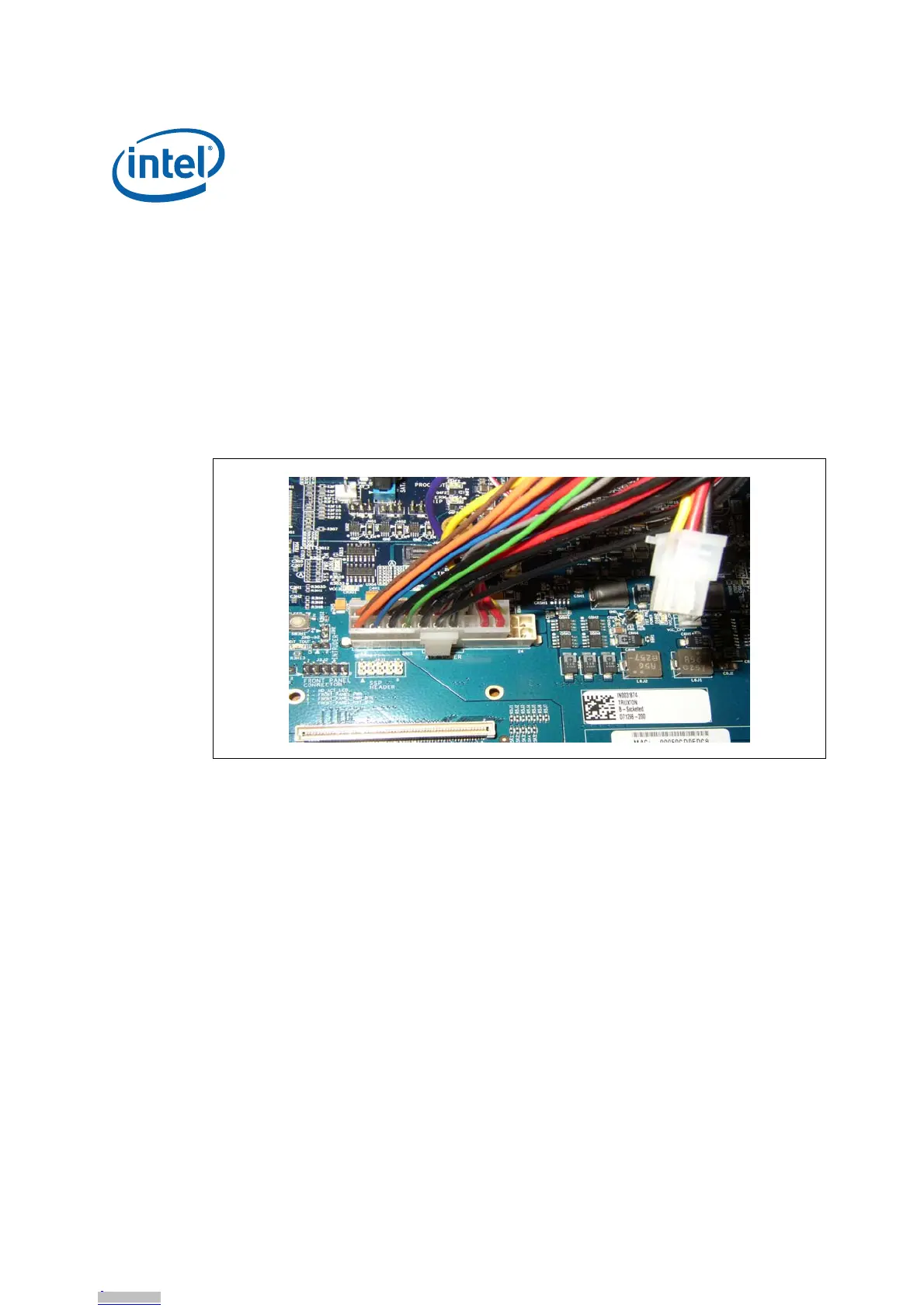

Figure 27. Connecting ATX Power Supply Cable
