Intel EP80579 User Manual

Development Kit User’s Guide
October 2008 Order Number: 320067-002US
63
Platform Setup—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology
6.1.8 Connecting the CAN Interface Cables (optional)
There are two CAN ports, CAN port 0 (inner 10-pin header) and CAN port 1 (outer
10-pin header) as shown in Figure 25. The (10-pin header to DB9) cables provided
should be used to connect the CAN network.
CAN interface cables can be used as COM3 (SIO Tertiary UART) in J2J1 2x5 header. See
Table 26, Table 14, and Figure 14 for more information.
6.1.9 Connecting the DVD-ROM Drive and GbE Ethernet Port
Figure 26 also shows the Ethernet cable connection to GbE Ethernet port 0 (the cable
on the right). Connect the SATA DVD-ROM cable to SATA Port 1. See Figure 19 on
page 59 for the SATA Port 0 and SATA Port 1 locations.
Note: The Ethernet cable is not supplied by Intel.

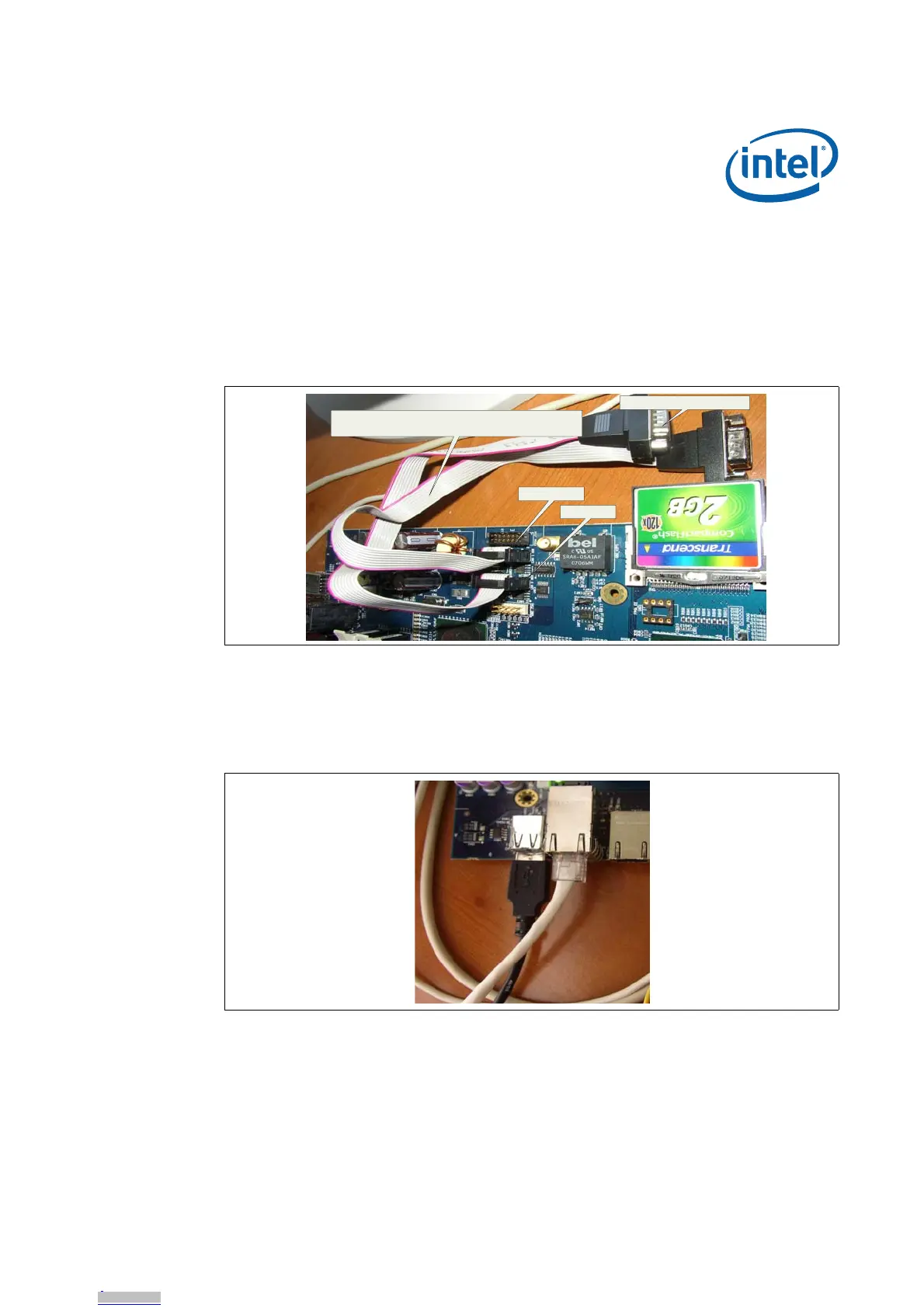

Figure 25. Connecting the CAN Interface Cables
CAN 0
CAN 1
To CAN Network
Two CAN Cables
10 PIN HEADER to DB9 MALE
Figure 26. Connecting Ethernet Cable Port 0
