73
Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction
and Insertion Instructions—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist
8.2 Extraction Instructions — Intel
®
EP80579 Development
Board with Advanced Interconnects Interposer

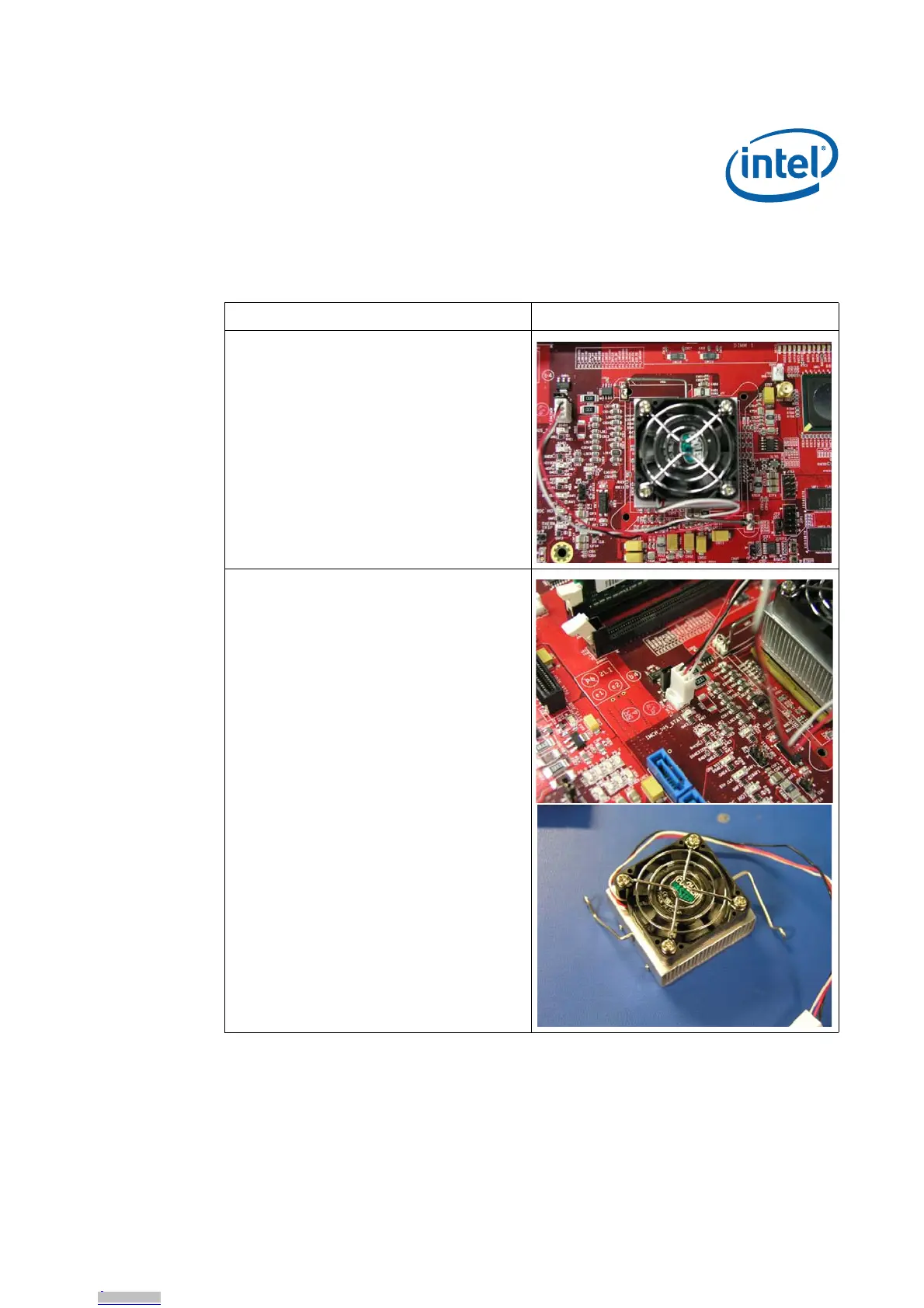

Steps Figures
1. Disengage CPU heatsink/fan retention clips
from board mounted anchor clips located at
opposing corners of CPU location.
2. Unplug heatsink fan cable from CPU fan
header on board. Remove heatsink from top
of CPU integrated heat spreader by twisting
base of heatsink ¼ turn clockwise or
counterclockwise.
Note: If using a dual-sided extraction tool go to
step #3 and continue reading below. If using
a single-sided extraction tool, go to step #8.
