Intel EP80579 User Manual

Development Kit User’s Guide
October 2008 Order Number: 320067-002US
35
Technical Reference—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology
4.7 Header Blocks
Figure 14 and Table 14 describe the location of the headers.
Warning: Before applying power to the Intel
®
EP80579 Integrated Processor, ensure that the
headers are connected correctly. Improper configuration of the Intel
®
EP80579
Development Board headers may result in board damage.

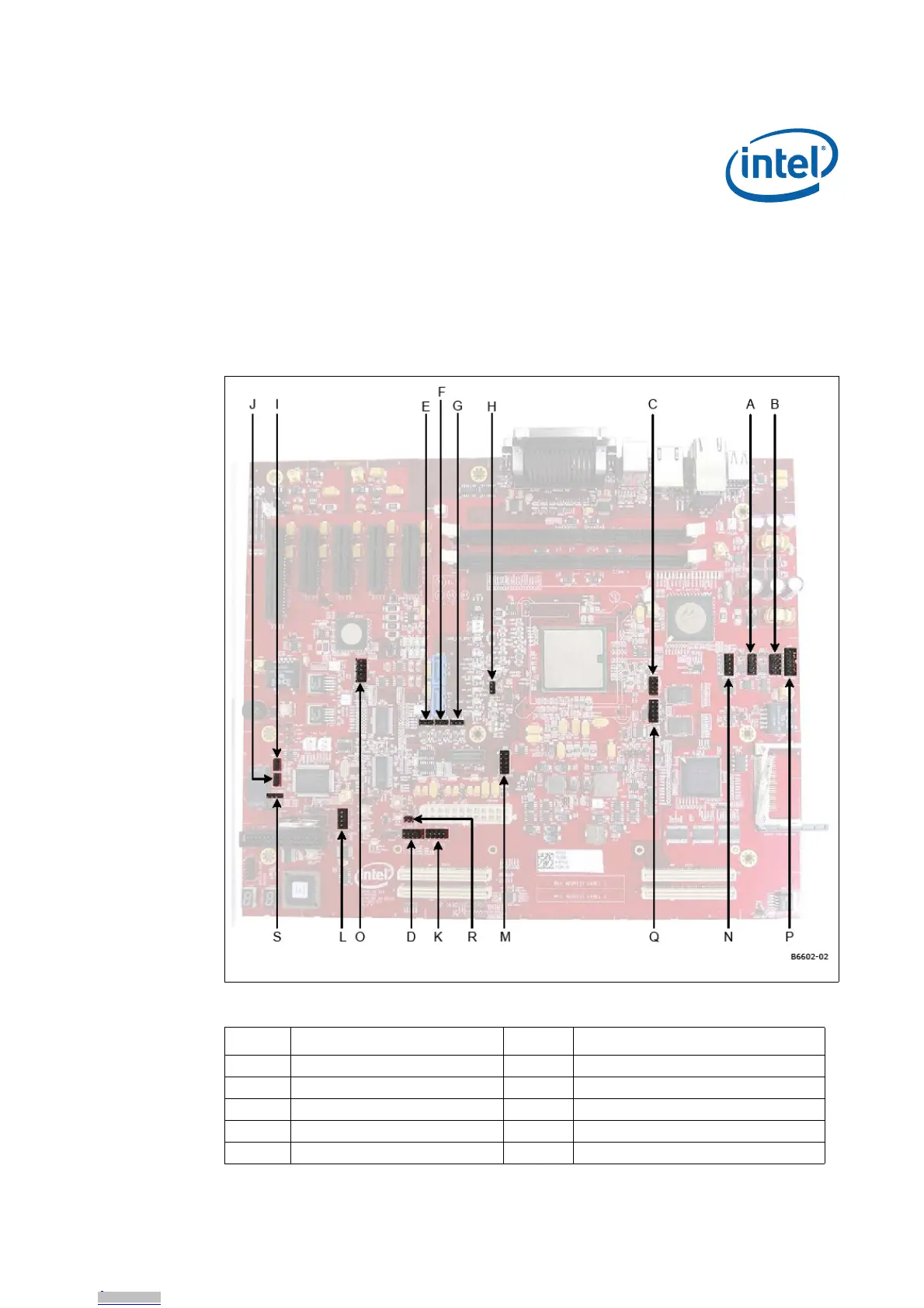

Figure 14. Header Locations
Table 14. Header Block Descriptions (Sheet 1 of 2)
Location Header Name Ref Des Pinout Signal Description
ACAN0 J9E3Table 21
BCAN1 J9E4Table 21
C IEEE 1588-2008 Hardware-assist J7E1 Table 22
D Front panel J3J2 Table 23
ESMBUS_A J4F2Table 24
