Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction
and Insertion Instructions—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist

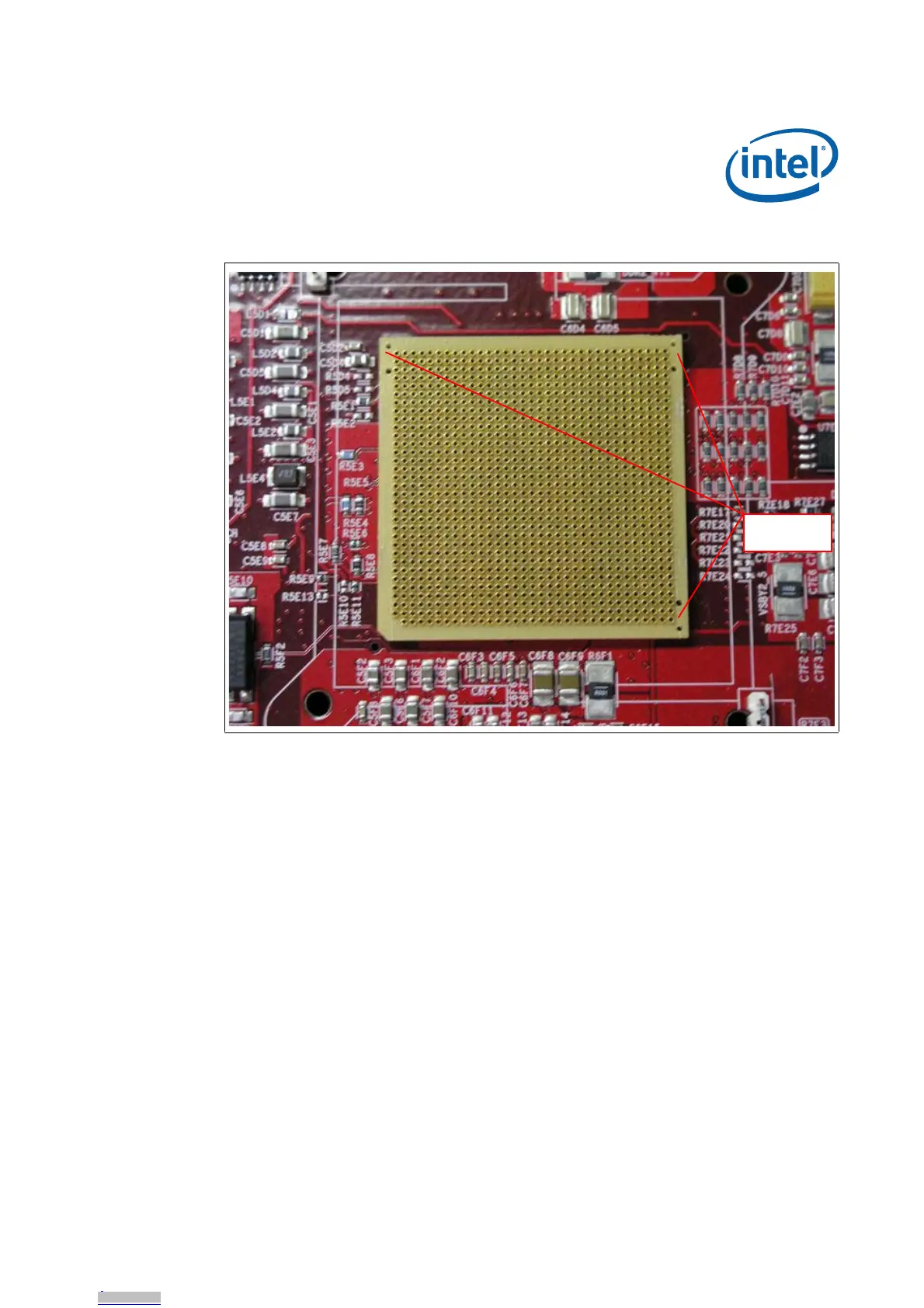

Socket alignment features include holes at three corners.
Figure 31. Advanced Interconnections 1088 POS PGA-to-BGA Socket
Alignment
Features
