Development Kit User’s Guide
October 2008 Order Number: 320067-002US
79
Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction
and Insertion Instructions—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist

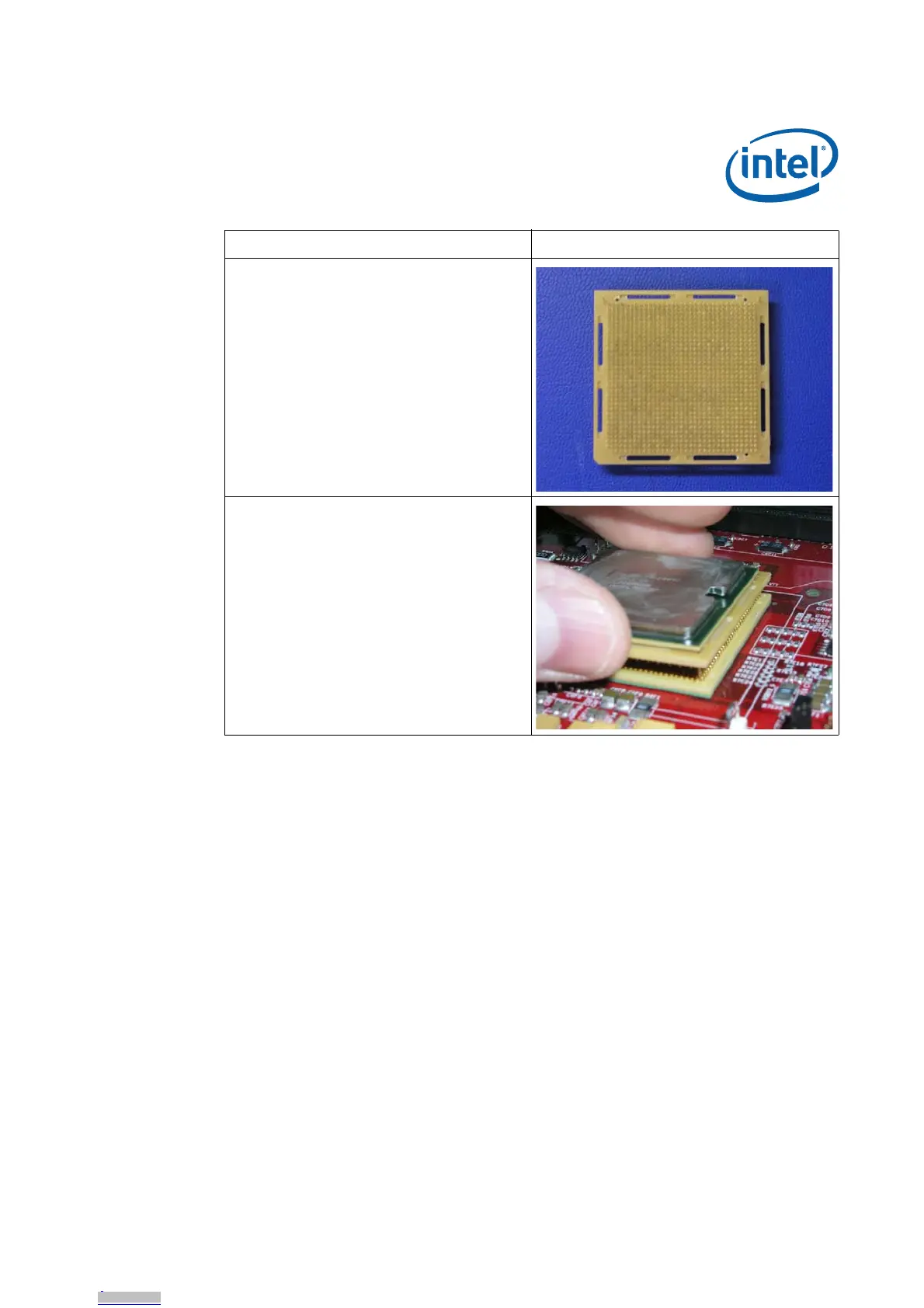

3. Inspect the bottom of the interposed part for
bent pins. If any pins are damaged or bent,
do not install the part. Attempting to do so
may damage the socket.
The interposer pin array includes three slightly larger
diameter, offset alignment pins located at three
corners. The fourth corner is truncated. These
alignment pins and corner feature ensure that the
orientation of the interposed part with respect to the
socket is correct.
4. Ensure that surface of socket is free from
debris. Align the three corner alignment
posts of the CPU and interposer assembly
with the matching holes on the corners of the
socket.
Steps Figures
To Next Page
