Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology—Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction and Insertion
Development Kit User’s Guide October 2008
80 Order Number: 320067-002US

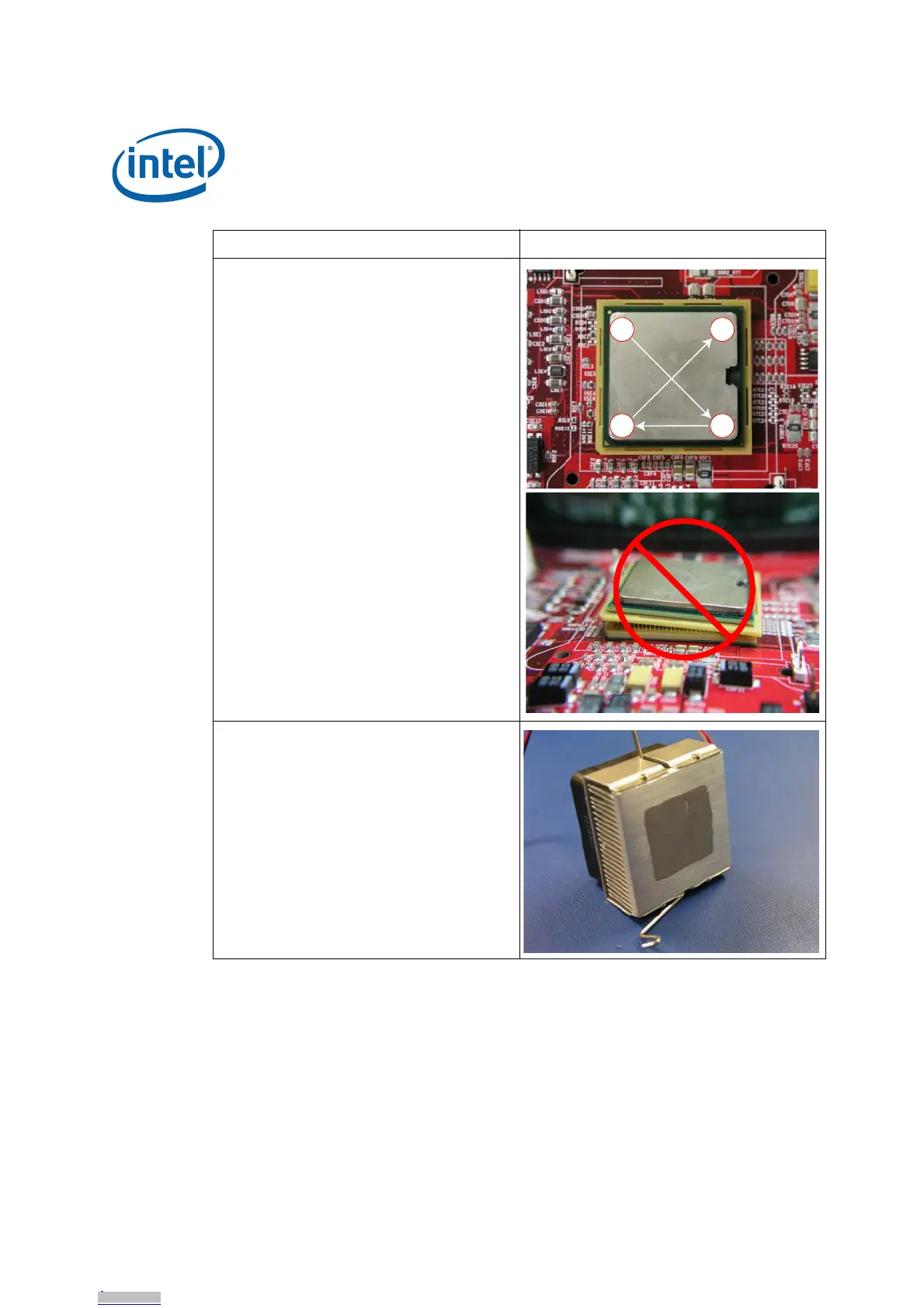

5. While holding the back of the Intel
®
EP80579
Development Board in the CPU area for
support, press down on top of the CPU’s
integrated heat spreader to engage the
interposer pins with the socket holes. Use the
recommended pattern illustrated in the
adjacent figure when applying force in the
negative Z direction (into the board) to help
preserve uniformity and symmetry of
insertion. Not doing so may result in an
improper connection.
Inspect the sides of the part when engaged
with socket to check for skewing. If present,
(illustrated at right) correct it before moving
to step 6.
Note: Specification for interposer insertion force
calls for up to ~80 lbf to ensure proper
engagement of interposer with socket.
6. If not present, apply thin layer of heatsink
grease or thermal compound to the bottom
of the heatsink fan.
Steps Figures
To Next Page
