Intel EP80579 User Manual

Development Kit User’s Guide
October 2008 Order Number: 320067-002US
81
Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction
and Insertion Instructions—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist
Note: If you need to remove the heatsink, follow step 8 and then step 7.
§ §

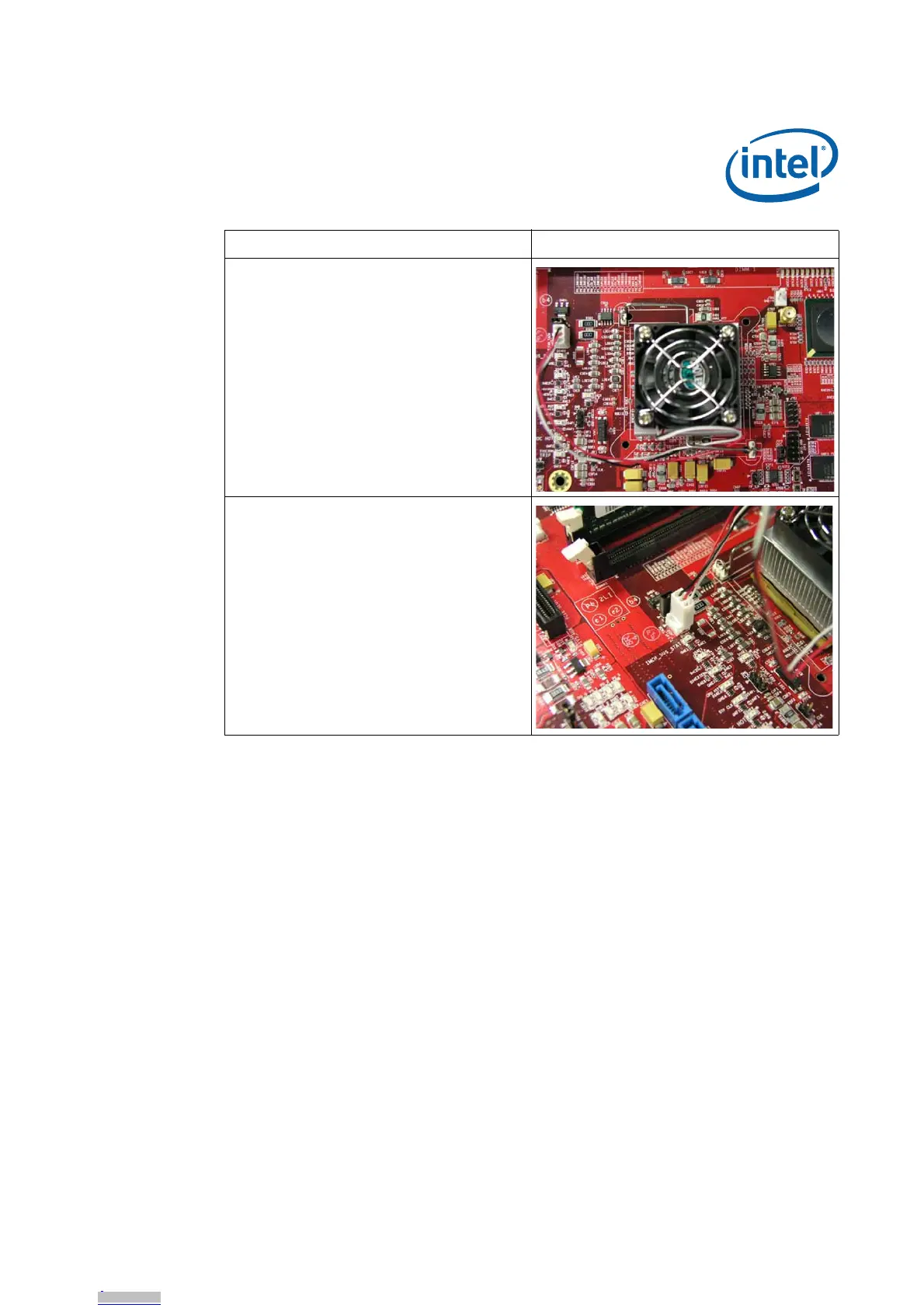

7. Hook one end of the heatsink clip to one of
the anchors located near the corner of the
CPU.
Securely hold the other end of the heatsink
clip.
Hold the clip firmly to the anchor to prevent
the heatsink from moving.
Attach the other end of the clip to the other
anchor.
8. Plug in the heatsink fan cable to the CPU fan
header on board.
Ensure that the heatsink is level and
centered on the CPU package and adjust it as
necessary before using the Intel
®
EP80579
Development Board.
Steps Figures
