Development Kit User’s Guide
October 2008 Order Number: 320067-002US
77
Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction
and Insertion Instructions—Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist
10. Insert the extraction tools’ blades into the
opposing guide slots located on edges of
interposer. Slide the blade edges towards the
center end of the guide slots (located along
center line of CPU) and engage both sides of
the extraction tools under the ends of guide
slots.
11. Gently push the arms of the extraction tools
until interposer pins and the CPU continue to
release from socket. Remove the extraction
tools from the guide slots.
By alternating the extraction motion and the
position of the tools at the front and back
interposer slot locations, the operator is able
to keep the extraction motion uniform in the
positive Z direction (out of the board).
12. Repeat steps 8 through 11 as necessary to
release interposer and CPU from socket.

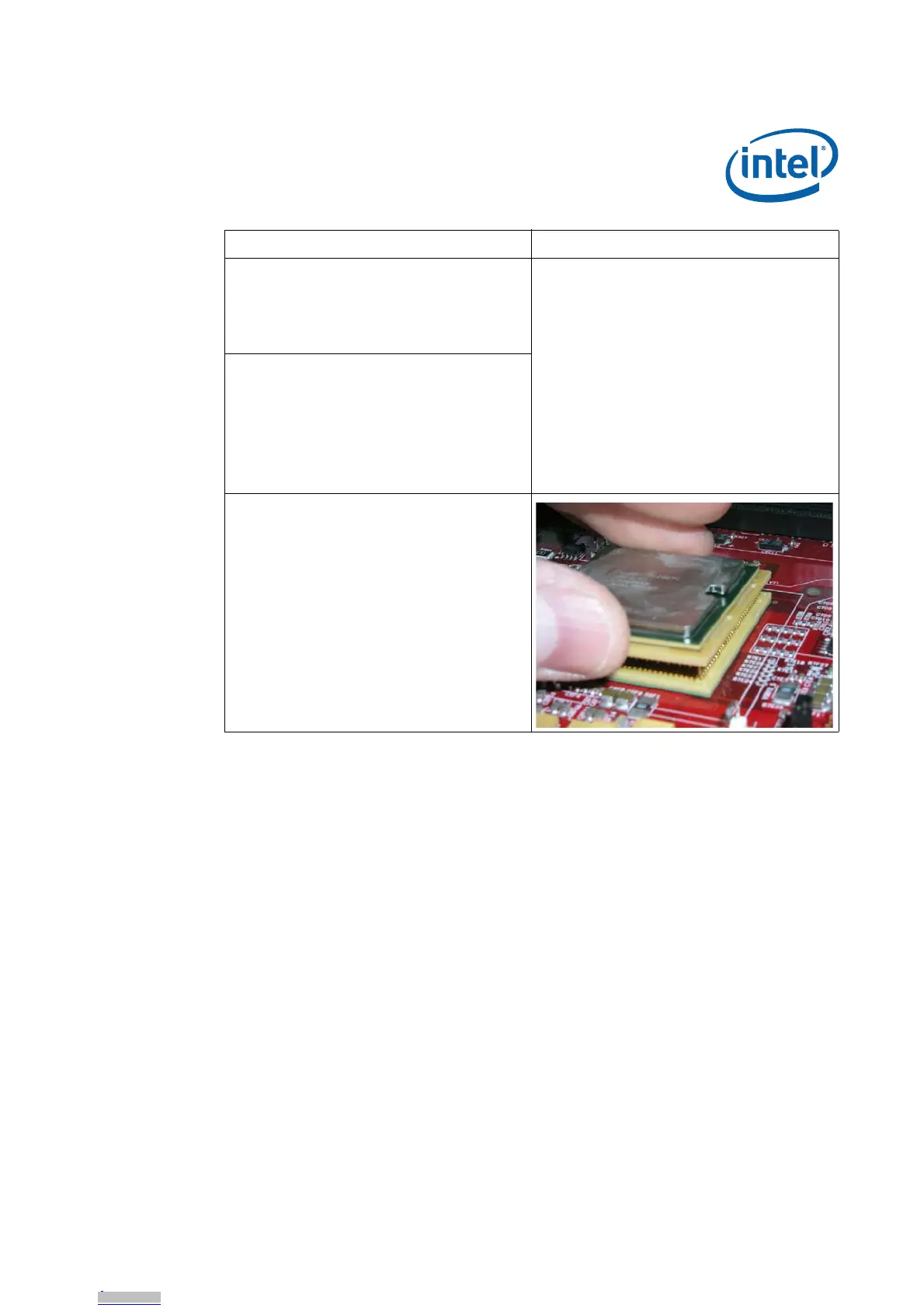

Grasp the edges of the interposer and
manually extract the loose part from the
socket assembly. Take care to protect
exposed pins from damage.
Extraction complete. If needed, see
Section 8.3, “Insertion Instructions — Intel
®
EP80579 Development Board with Advanced
Interconnects Interposer to install a new
part.
Steps Figures
