Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology—Socketed Intel
®
EP80579 Integrated Processor with Intel
®
QuickAssist Technology Extraction and Insertion
Development Kit User’s Guide October 2008
76 Order Number: 320067-002US

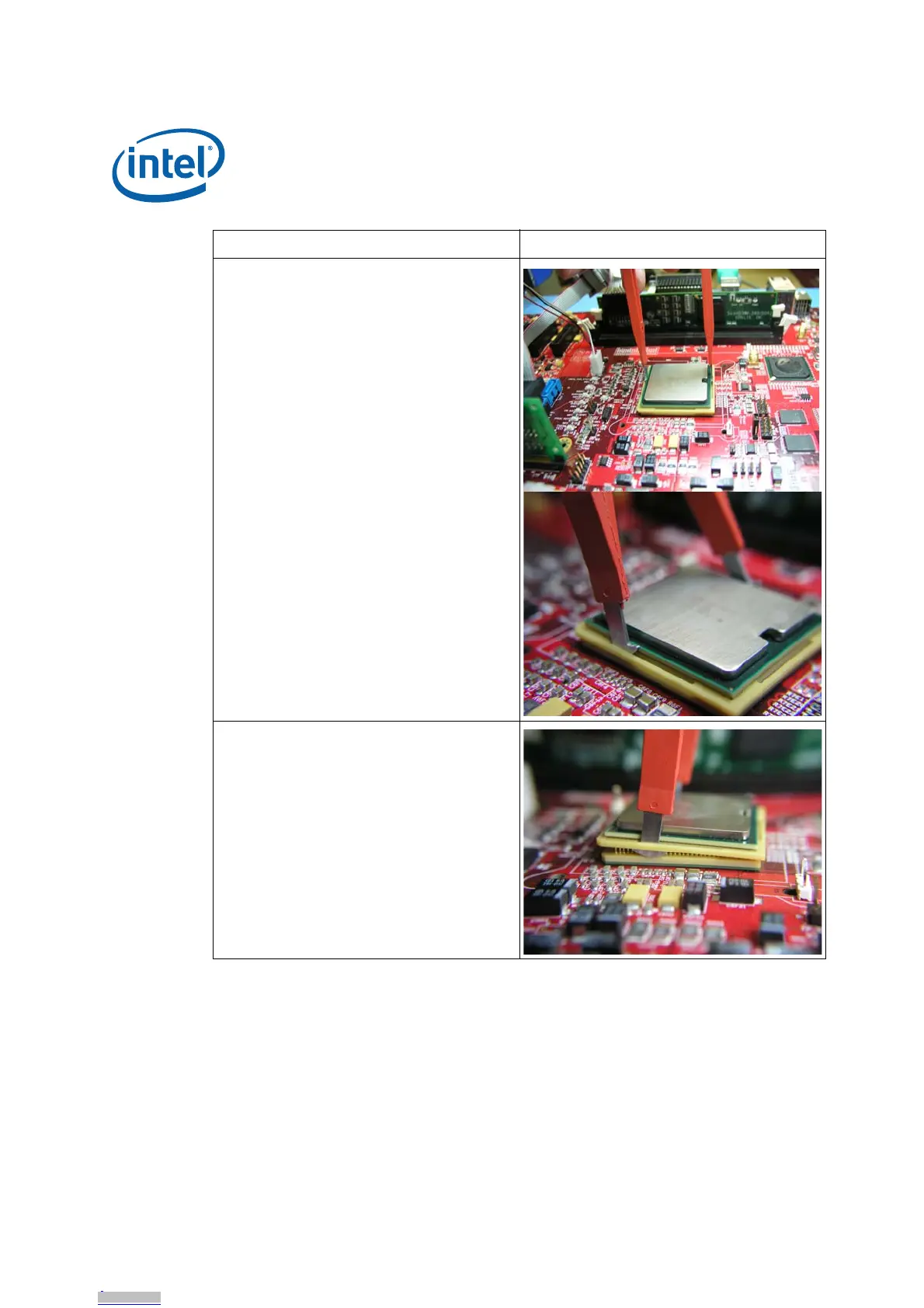

8. (For Single-sided Extraction Tools -
Continued from step 2) Insert the two
extraction tool blades into the guide slots
located on the edges of the interposer. Slide
the blade edges of towards the center end of
the guide slots (located along center line of
CPU) and engage both extraction tools under
the ends of guide slots.
Extraction tool blades have a semi-circular cam shape
that allows the tool to impart a positive Z direction
(out of the board) force on bottom edge of interposer
via a cam-like action.
9. Gently and uniformly pull the arms of the
extraction tools until the interposer pins and
CPU begin to pull out of the socket. Remove
the socket extraction tools from guide slots.
Steps Figures
To Next Page
