Operating Install Wizard
ü

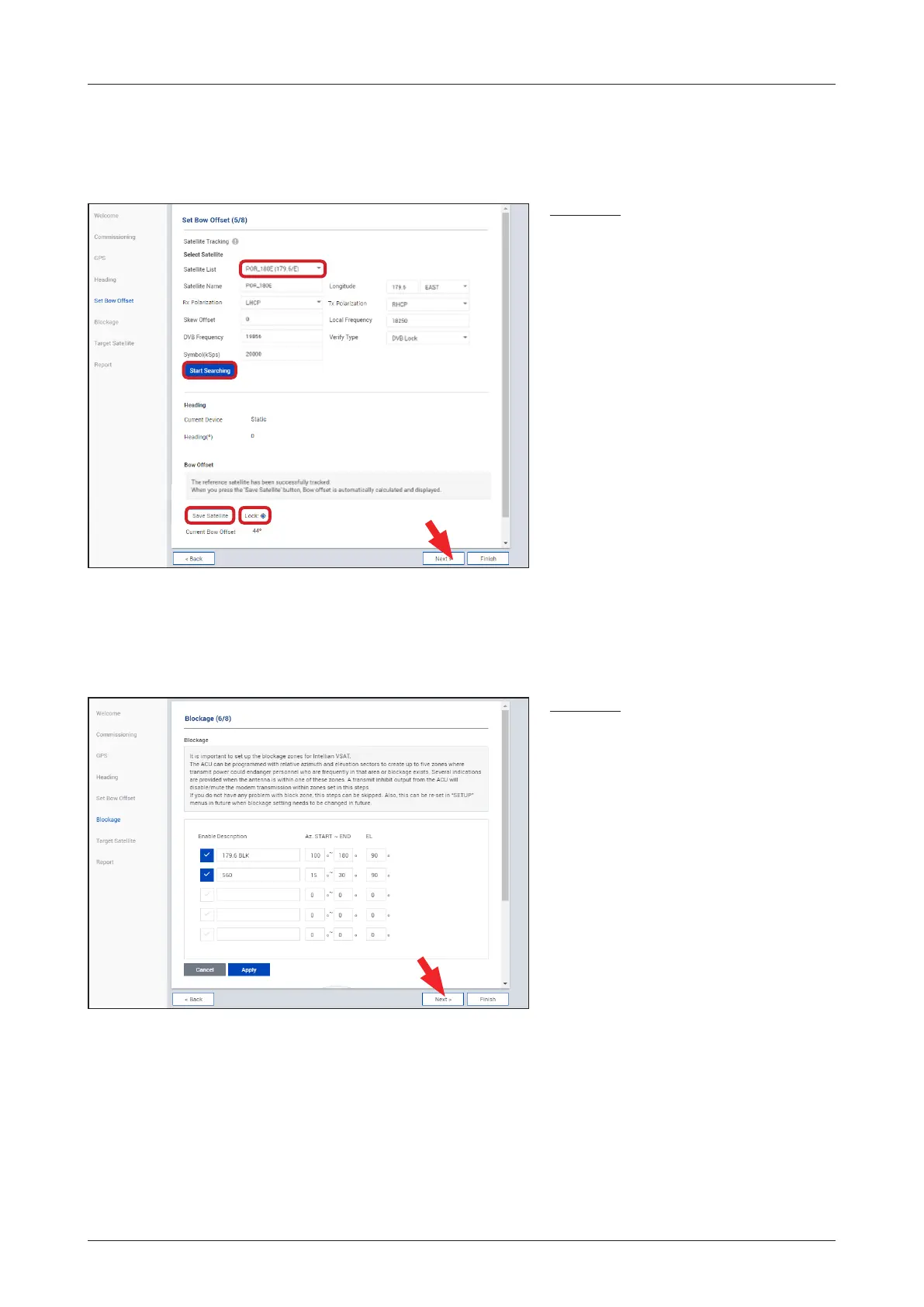

Step 5: Blockage
Description
It is important to set up the blockage
zones for Intellian VSAT. The BDT can
be programmed with relative azimuth
and elevation sectors to create up to
ve zones where transmit power could
endanger personnel who are frequently
in that area or blockage exists. The "AZ
Start" is where the relative azimuth starts
and the "AZ End" is where the relative
azimuth ends (Range: 0 ~ 360). The
"EL" is where the elevation block starts
(Range: 0 ~ 90).
If you have no problems, click the "Next"
button.
ü
Step 4: Set Bow Offset
For setting bow offset, a trackable satellite must be selected. When Antenna tracks the selected satellite, the
bow offset will be set up automatically based on the GPS information.
Description
• Step 1: select a satellite in satellite
list then click the "Start Searching"
button.
Please wait until antenna terminal is
tracking the satellite. The bow offset will
be set up automatically.
• Step 2: check the "Lock On" mark and
click the "Save Satellite" button in the
"Bow Offset" menu to save the bow
offset information to BDT.
If you have no problems, click the "Next"
button.
