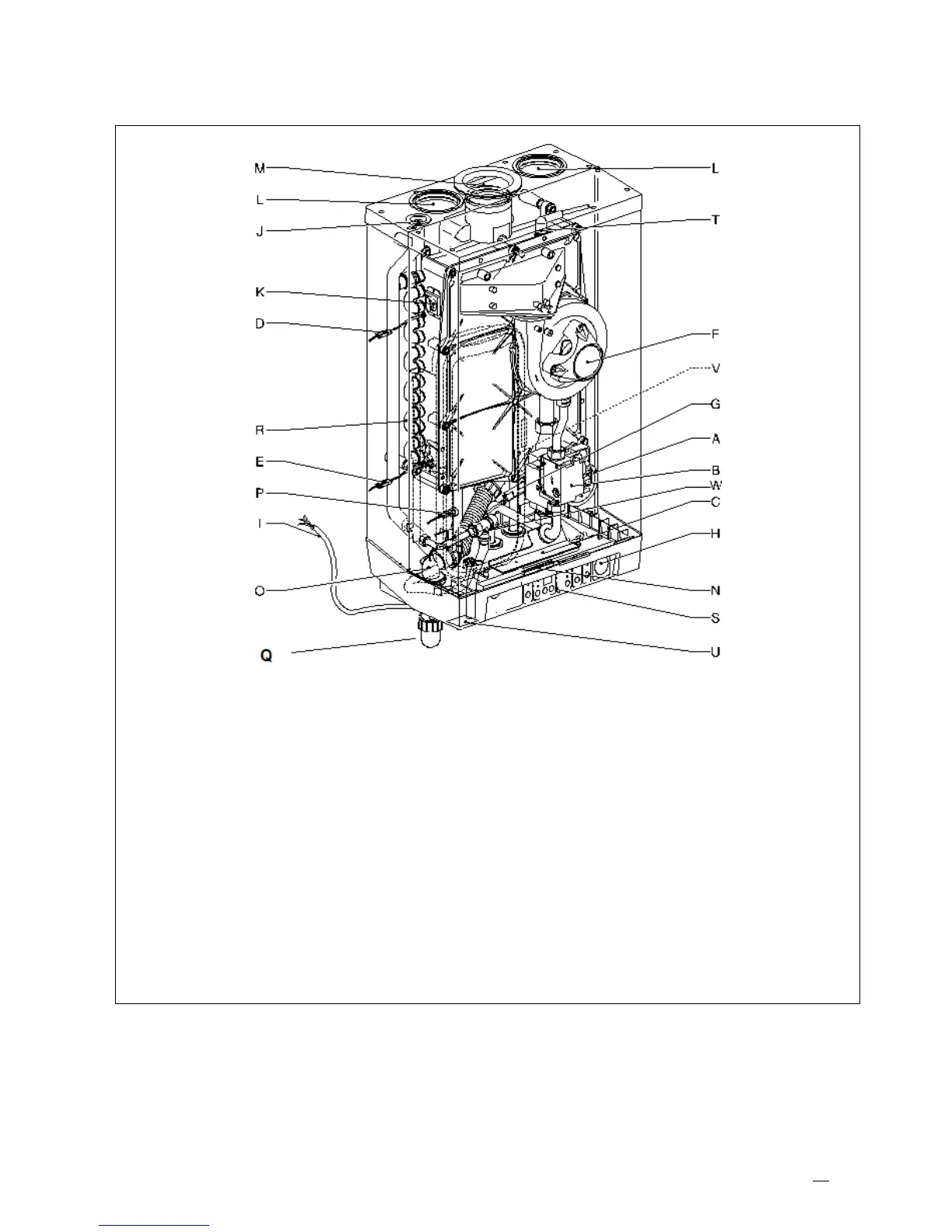

4. MAIN COMPONENTS
A
CH pump
M
Flue discharge
B
Gas valve
N
Connecting block / terminal list X
C
Burner controller with operating panel
O
Condensate
discharge
D
Supply sensor S1
P
Hot water sensor S3
E
Return sensor S2
Q
Siphon cup
F
Fan
R
Heat exchanger
G
Flow switch
S
Operating panel and display
H
Pressure gauge
T
Ionisation/ignition probe
I
1m connecting cable 230 V ~
U
Position type plate
J
Manual air vent
V
Expansion vessel (shown in broken lines)
K
Sight glass and mirror
W
Pressure relief safety valve, 3 bar
L
Air supply

Intergas Rapid 25 Specifications

General

Boiler Type	Combi
DHW Output	25 kW
Efficiency Rating	93%
Flow Rate	10.2 l/min
Mounting	Wall Mounted
ERP Efficiency	A
Max Gas Rate	2.78 m³/h
Dimensions (H x W x D)	590 x 450 x 240 mm
