5.4 Mount the appliance
1. Unpack the appliance.

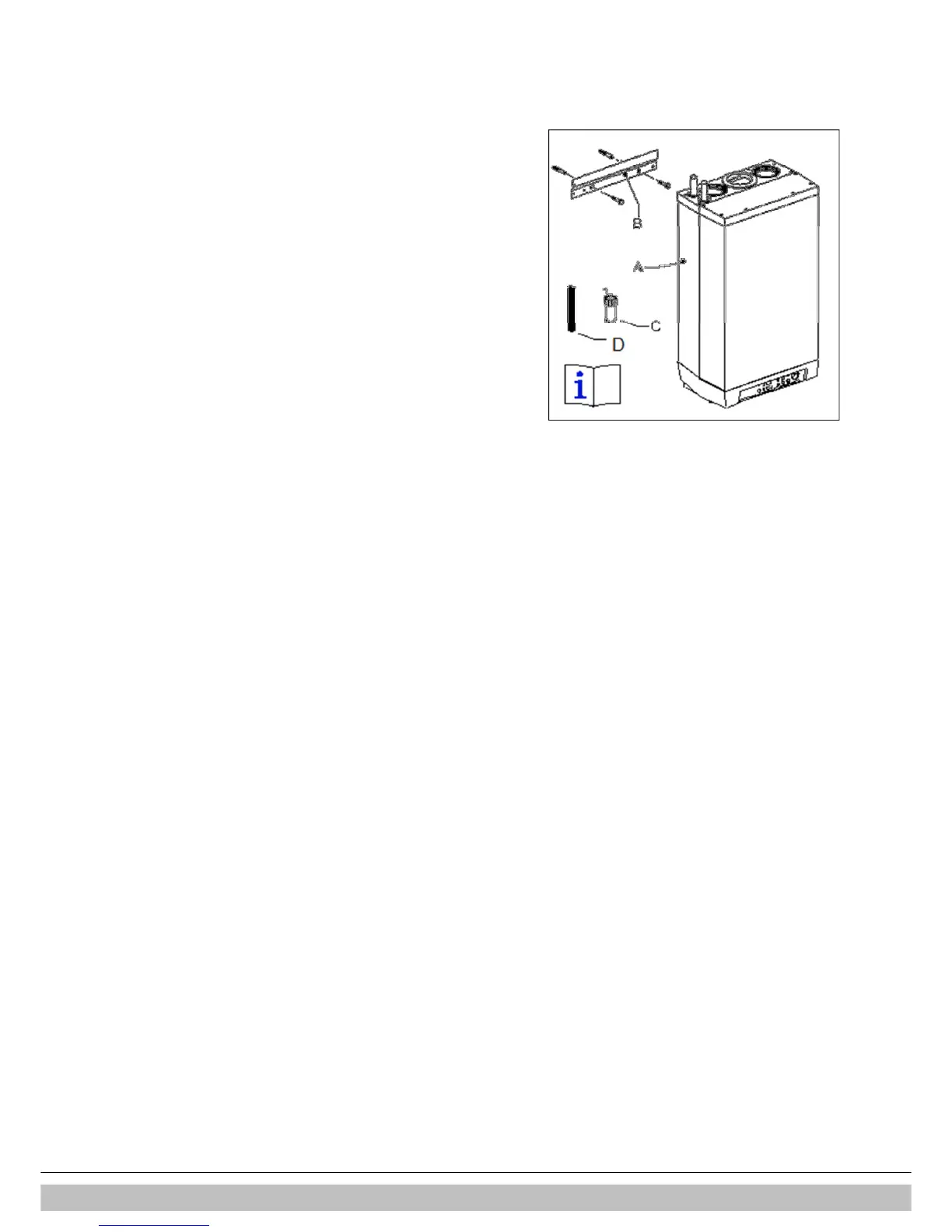

2. Check the content of the packaging. This consists of:-
• Appliance (A)
• Mounting strip (B)
• Siphon cup (C)
• Flexible hose (D)
• Installation instructions
• Guarantee card
3. Check the appliance for any damage: report damage to the supplier
immediately.
1. Check when using a connection kit whether the compression rings are
straight in the connectors.
2. Place the appliance: slide it top-down over the mounting strip.
3. The flexible tube from the condensate siphon should be inserted into an
open waste pipe of not less than 32 mm diameter. If connected to a soil
pipe or waste system, the waste pipe must include a trap (similar to
arrangement for washing machine).
4. Tighten the compression fittings.
5. Mount the air supply and the flue discharge.
6. Mount the siphon cup (C) to the siphon connection at the bottom side of
the boiler.Make sure the O-ring is placed correctly in the cup.
7. When needed the condensate outlet (behind the cup) can be extended
using the flexible hose that has been delivered together with the boiler.
8. Fill the internal siphon by removing the hose coming from the PRV.
Make sure the hose is placed again afterwards.
