2. DESCRIPTION OF THE APPLIANCE
2.1 General

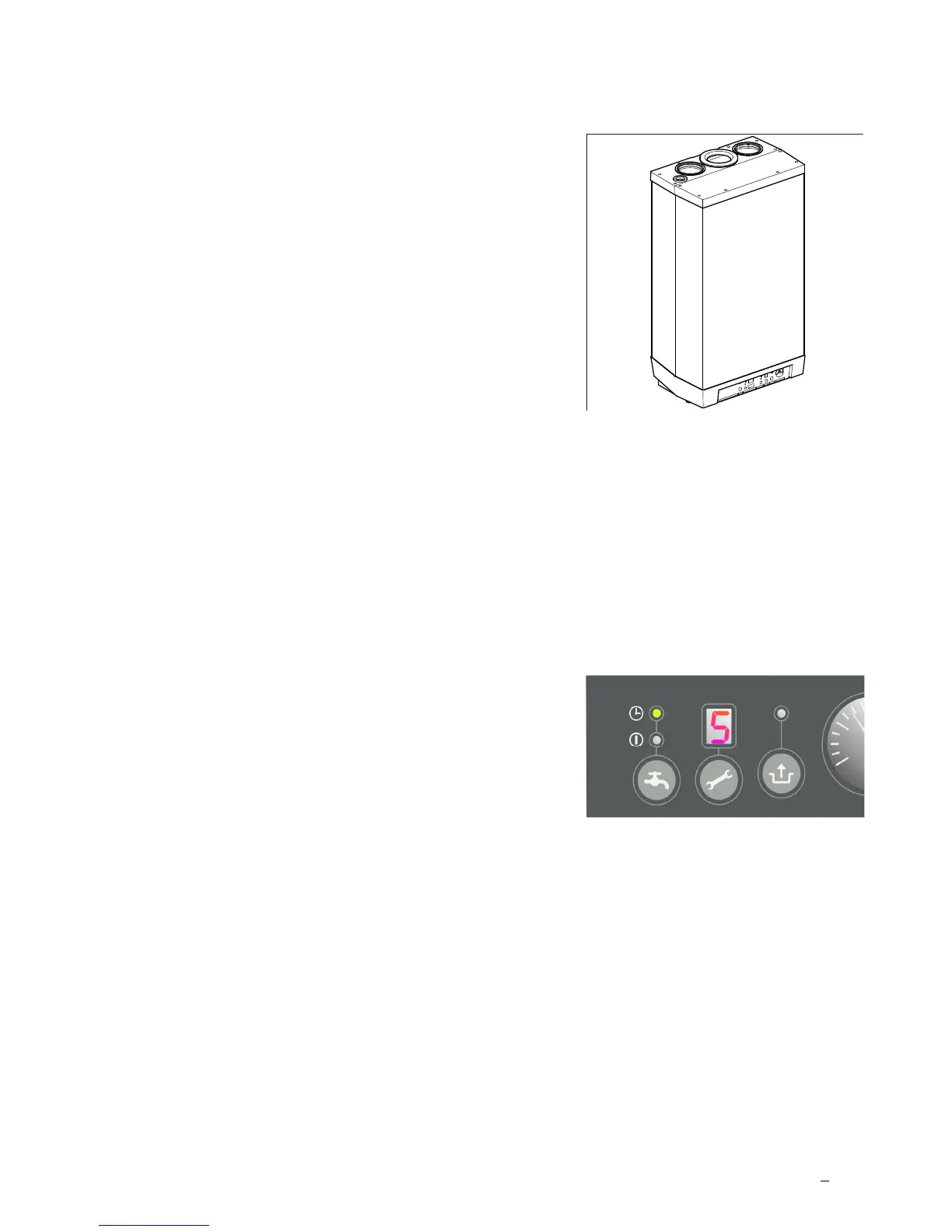

The Intergas Rapid HR wall mounted, gas fired boiler is a closed appliance. The
appliance is intended to deliver heat to the water in a CH system and the DHW
installation.
The air supply and combustion gas flue can be connected to the appliance by
means of two separate pipes. A concentric connection can be supplied if
requested. The appliance has been inspected in combination with the Intergas
“combi duct”, but it can also be connected to combi ducts that comply with the
universal requirements for combi ducts and which carry a ‘Gaskeur’(Dutch gas
certification).
Depending on preference, the appliance may be connected to a mounting
bracket, a frame with top connection and various connection sets. These are
supplied separately.
The Intergas Rapid HR wall mounted gas fired boilers carry the CE label and
electrical protection class P44
It is possible to use the appliance solely for hot water or solely for heating. The
unused system does not have to be connected. (See section 8.3)
The appliance is supplied as standard for natural gas (G25). On request an
appliance can be supplied for propane (G31).
2.2 Operation
The Intergas Rapid is a wall-mounted modulating high efficiency boiler. This
means that the power is adjusted to the heat demand.
In the aluminium heat exchanger two separate copper circuits have been
integrated.
Because of the separated circuits for central heating and hot water, the heating
and the hot water supply can operate independently of each other. The hot
water supply has priority over the heating. They cannot work simultaneously.
The appliance has been provided with an electronic burner controller that
controls the fan with the heat demand from the heating system or the hot water
supply, opens the gas valve and ignites the burner and continuously monitors
the flame and controls it dependent on the power required.
