Intermec EasyCoder PF4i Service Manual

92 Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual
Chapter 7—Print Mechanism
EasyCoder PF2i
The 8 dots/mm (203.2 dpi) printhead contains 448 dots, which give a
maximum print width of 56 mm (2.2 inches). The same unit of measure
(dots) can be used both across and along the feed direction.
Specifications
Density 8 dots/mm (203.2 dots per inch)
Print width 56 mm (2.2 inches)
Number of dots 448
Dot size 0.125 mm (4.92 mils)

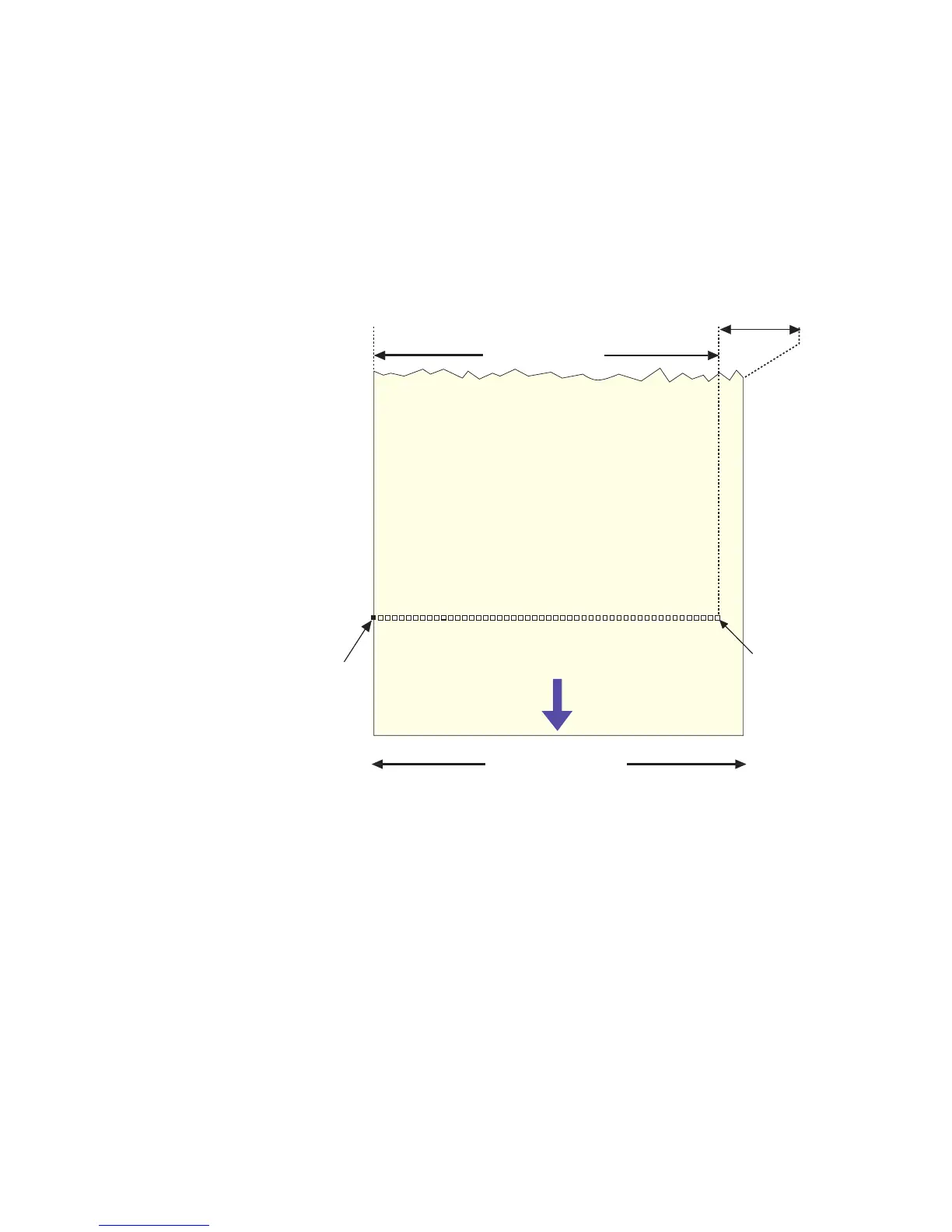

FEED
DIRECTION
Dot #0
Dot-line
on printhead
Dot #447
4 mm (0.16 in.)
Print Width
max. 56 mm (2.2 in.)
Media Width
25-60 mm (1-2.36 in.)
EasyCoder PF4i and PF4i Compact Industrial
These two printer have as standard an 8 dots/mm (203.2 dpi) printhead
or as an option an 11.81 dots/mm (300 dpi) printhead (Fingerprint only).
In addition to the normal printheads, which are designed for a media
thickness up to 175 µm (7 mils), there are also 8 dots/mm and 11.81
dots/mm printheads for media thicknesses from 170 to 220 µm (6.6 to 8.7
mils).
Specifications
Density 8 dots/mm (203.2 dots per inch)
Print width 104 mm (4.095 inches)
Number of dots 832
Dot size 0.125 mm (4.92 mils)
Density 11.81 dots/mm (300 dots per inch)
Print width 105.7 mm (4.161 inches)
Number of dots 1248
Dot size 0.085 mm (3.33 mils)

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
