Chapter 1—Models and Options
2
1
4
3
bw
fw
Options for EasyCoder PF2i
The EasyCoder PF2i can be fi tted with a number of options:
• Transfer Ribbon Mechanism (see Chapter 6)
• Label Taken Sensor (see Chapter 9)
• Liner Takeup Unit (see Chapter 8)
• Media Supply Hub (replaces Supply Post) (see Chapter 5)
• 3-inch Adapter (for Media Supply Hub) (see Chapter 5)
• Quick-Load Guides (see Chapter 5)
• Long or Short Side Door (see Chapter 3)
• Real Time Clock Circuit (not IPL) (see Chapter 13)
• Interface boards of various types (see Chapter 14)

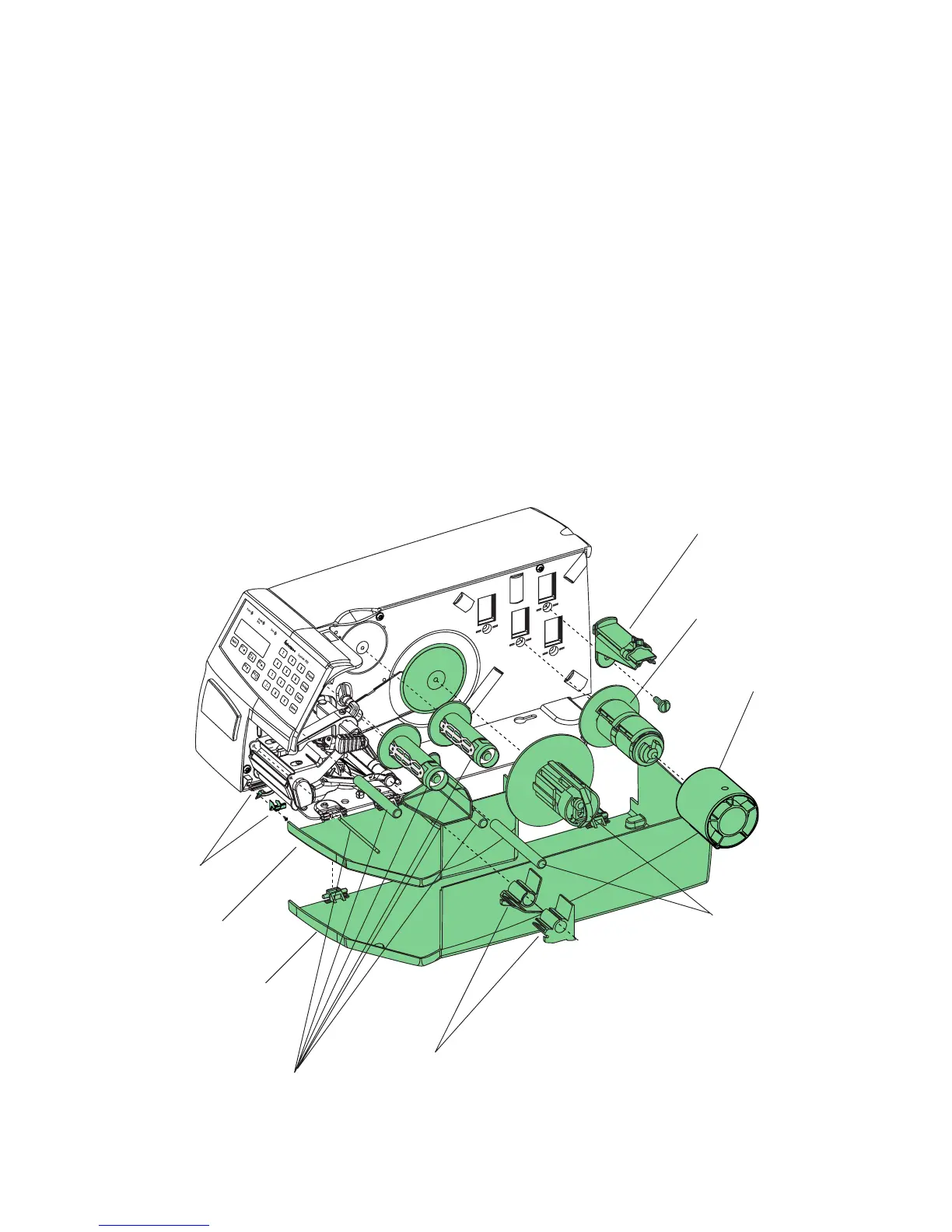

Label taken
sensor
3-inch adapter
Quick-Load guides
Short side door
Media supply
roll post with
edge guide
Long side door
Liner takeup
with guide
shaft
Media supply
hub
Transfer ribbon
mechanism

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
