Intermec EasyCoder PF4i Service Manual

Intermec EasyCoder PF2i, PF4i, and PF4i Compact Industrial—Service Manual 7
Chapter 1—Models and Options
Options for EasyCoder PF4i
The EasyCoder PF4i can be fi tted with a number of options:
• Label Taken Sensor (see Chapter 9)
• Liner Takeup Unit (see Chapter 8)
• Paper Cutter (see Chapter 10)
• Media Supply Hub (replaces Supply Post) (see Chapter 5)
• Printhead Spring (for vertical mounting) (see Chapter 7)
• 3-inch Adapter (for media supply hub) (see Chapter 5)
• Quick-Load Guides (wide/narrow) (see Chapter 5)
• Long/Short Side Door or Megatop (see Chapter 3)
• Real-time Clock Circuit (not IPL) (see Chapter 13)
• Interface boards of various types (see Chapter 14)

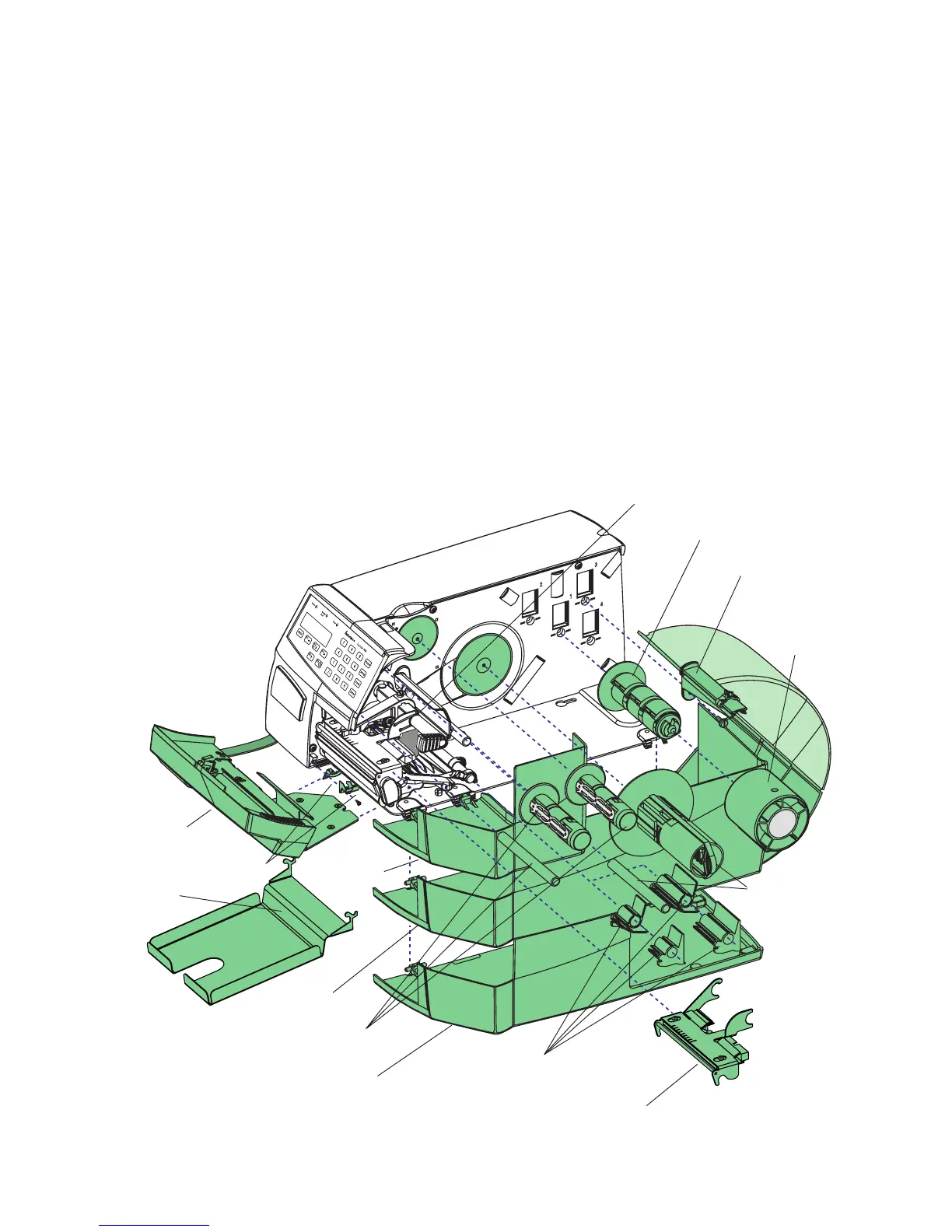

Label taken sensor
3-inch
adapter
Quick-Load guides
(wide & narrow)
Short side
door
Media supply hub
8-inch Megatop
Liner takeup
with guide
shaft
Transfer ribbon
mMechanism
Media supply
roll post with
edge guide
Long side
door
Tray
Paper
cutter
Printhead spring
Optional printheads

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
