Chapter 7—Print Mechanism
Cleaning the Media Guide

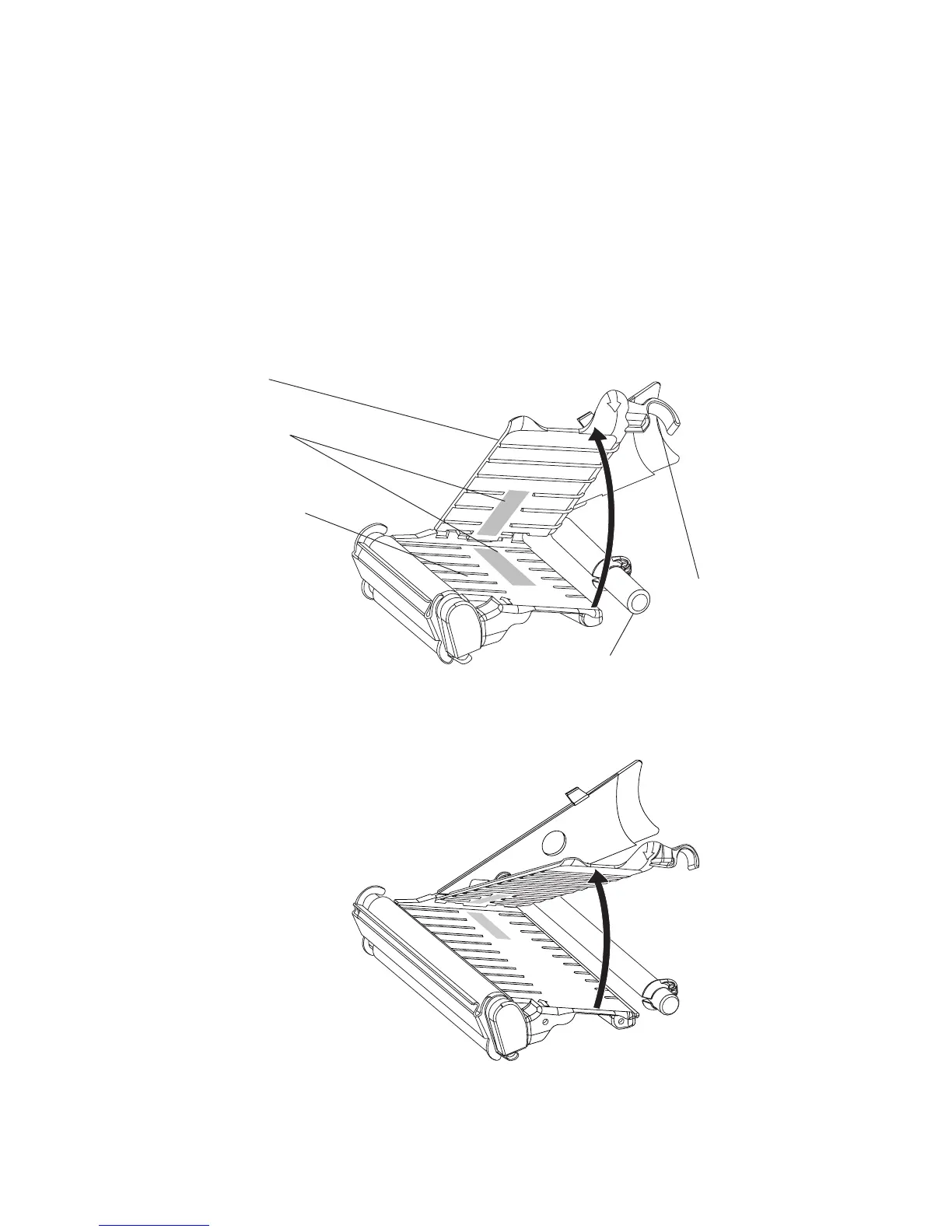

The upper part of the media guide assembly with the upper LSS can be
tilted upward or removed for occasional cleaning.
• Raise the printhead, disengage the semicircular snap-lock from the edge
guide shaft, and tilt up the upper part of the media guide assembly. In
most cases, this gives suffi cient access to the LSS “windows” for cleaning.
Use a cotton swab or similar moistened with isopropyl alcohol to wipe
away adhesive residue, dust, and other substances that may interfere
with the light between the two parts of the LSS.
Media guide
(lower part)
Media guide
(upper part)
Snap-lock
Edge guide shaft
LSS “windows”
EasyCoder PF2i
EasyCoder PF4i and PF4i Compact Industrial

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
