Intermec EasyCoder PF4i User Manual

Chapter
5
—
Thermal
Transfer
Printing
Ribbon
Load,
cont.
5

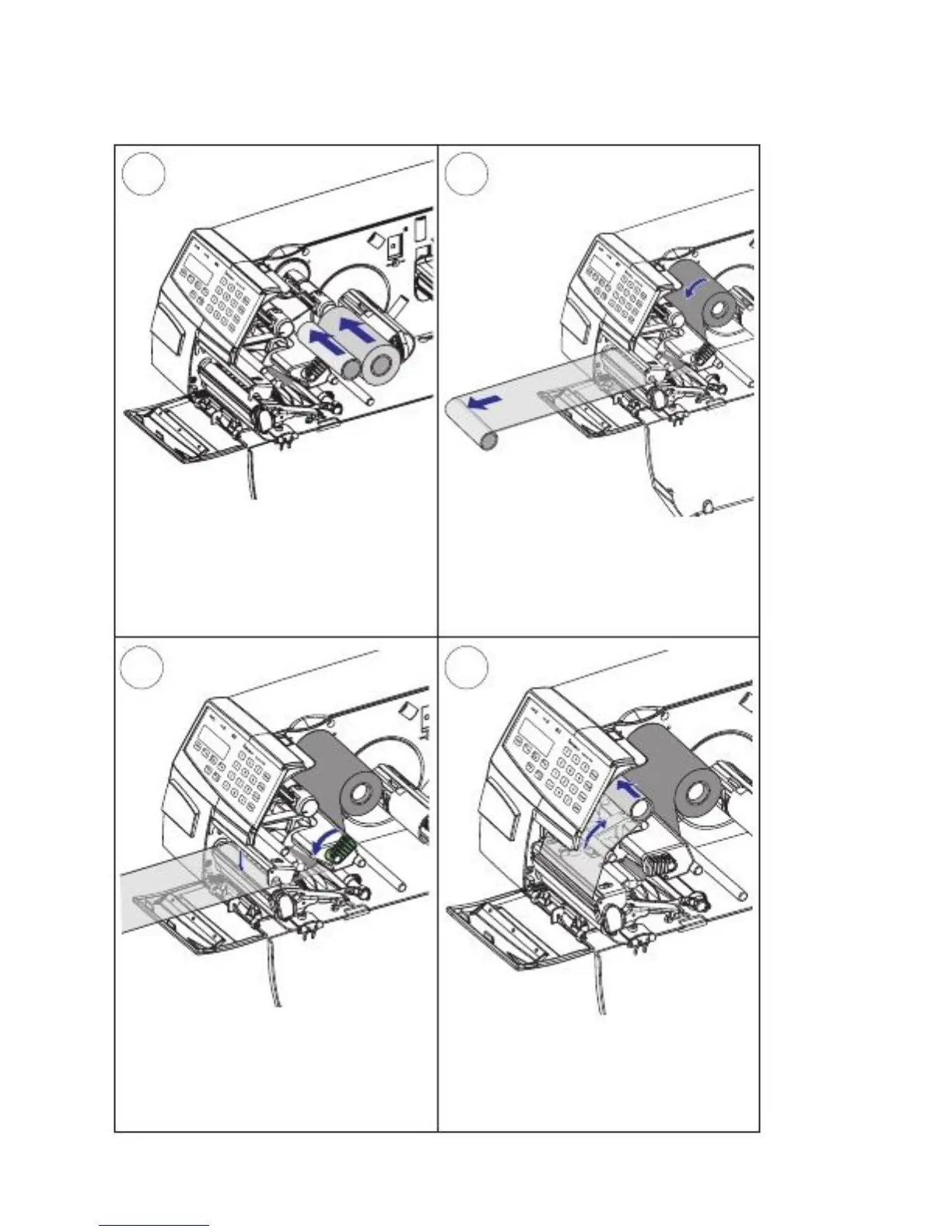

Slide
the
ribbon
roll
onto
the
supply
hub
so the ink-coated side faces down when
the ribbon is routed through the print
mechanism.
7
Without
releasing
the
ribbon,
turn
the
printhead lift lever counterclockwise
to engage the printhead and lock the
ribbon.
42

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
