INVT Goodrive 200 - Peripherial Options and Parts Appendix C; Peripherial Wiring; What this Chapter Contains What this Chapter Contain; Peripherial Options and Parts

Goodrive200 inverters
Appendix C
235
Peripherial options and parts Appendix C
C.1 What this chapter contains What this chapter contain
This chapter describes how to select the options and parts of Goodrive200 series.
C.2 Peripherial wiring

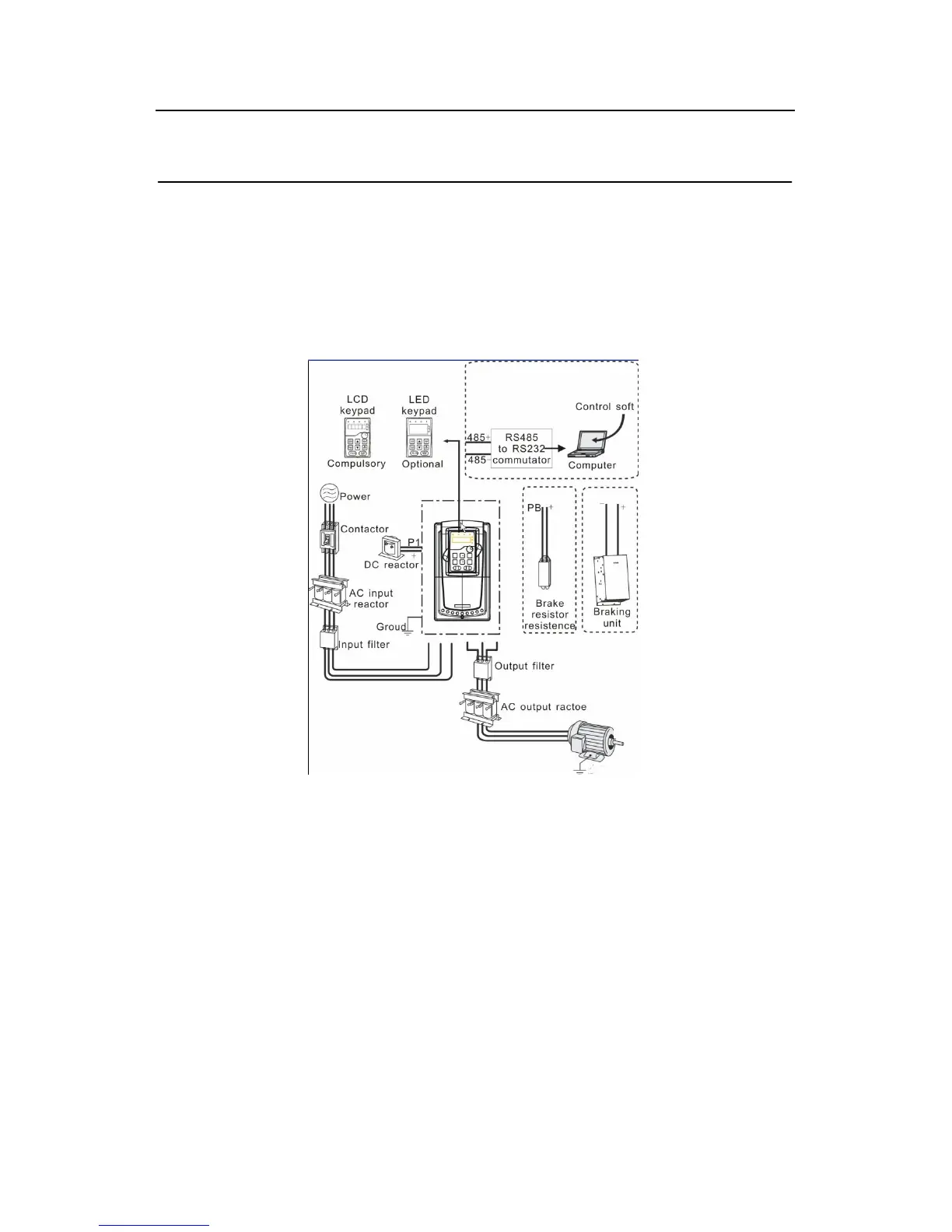

Below is the peripherial wiring of Goodrive200 series inverters.
Note:
1． The inverter below 30kW (including 30kW) are embedded with braking unit.
2. Only the inverter above 37kW (including 37kW) have P1 terminal and are connected
with DC reators.
3. The braking units apply standard braking unit DBU series in. Refer to the instruction of
DBU for detailed information.
