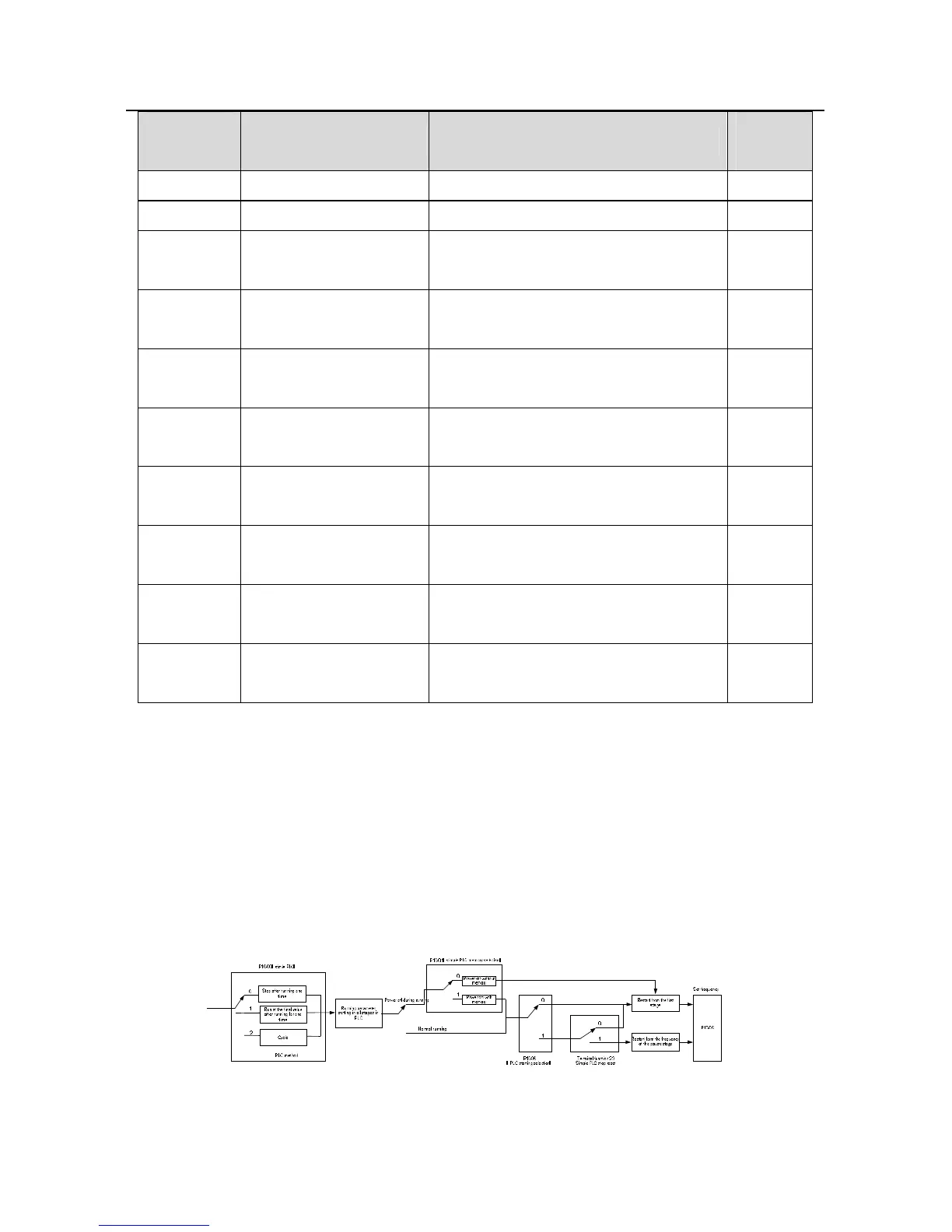

Goodrive200 inverters Basic operation instruction
165
Function
code
Name Detailed instruction of parameters
Default
value
P06.06 Y switching-
on delay time
0.000~50.000s 0.000s
P06.07 Y switching-off delay time
0.000~50.000s 0.000s
P06.08
HDO switching-on delay
time
0.000~50.000s(valid only when
P06.00=1)
0.000s
P06.09
HDO switching-off delay
time
0.000~50.000s(valid only when
P06.00=1)
0.000s
P06.10
RO1 switching-on delay
time
0.000~50.000s 0.000s
P06.11
RO1 switching-off delay
time
0.000~50.000s 0.000s
P06.12
RO2 switching-on delay
time
0.000~50.000s 0.000s
P06.13
RO2 switching-off delay
time
0.000~50.000s 0.000s
P07.40
The Max. temperature at
current fault
0
P17.13
ON-OFF output terminals
state
0
7.11 Simple PLC
Simple PLC function is also a multi-step speed generator. The inverter can change the running
frequency, direction to meet the need of processing according to the running time automatically. In
the past, this function needs to be assisted by external PLC, but now the inverter can realize this
function by itself.
The series inverters can control 16-step speed with 4 groups of ACC/DEC time.
The multi-function digital output terminals or multi-function relay output an ON signal when the set
PLC finishes a circle (or a step).
