Goodrive200 inverters Installation guidelines
25
Fig 4-5 Vertical installation
Note: Windscreen should be added in Vertical installation for avoiding mutual impact and
insufficient cooling.
4.2.7 Tilt installation

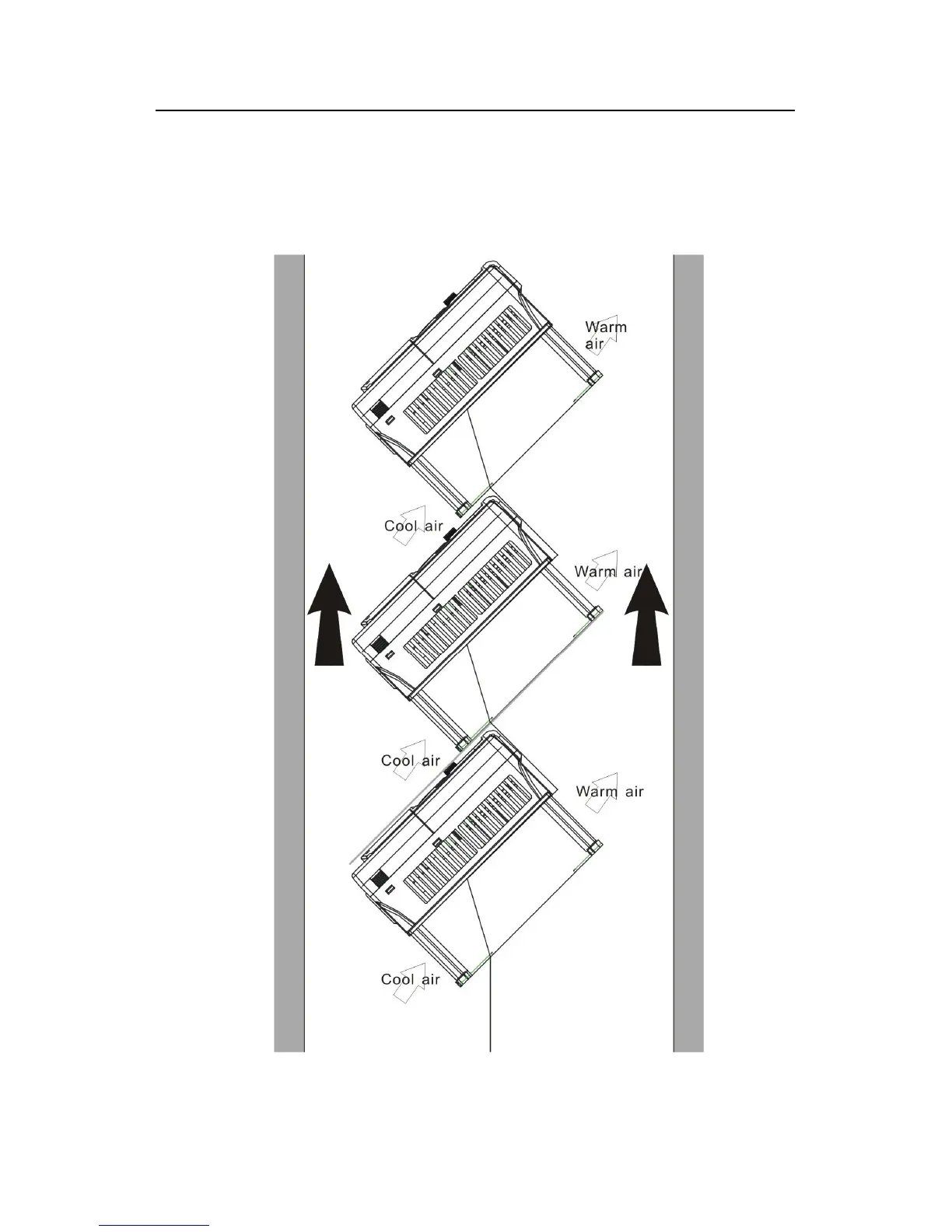

Fig 4-6 Tilt installation
