Goodrive35 inverters Installation guidelines
39

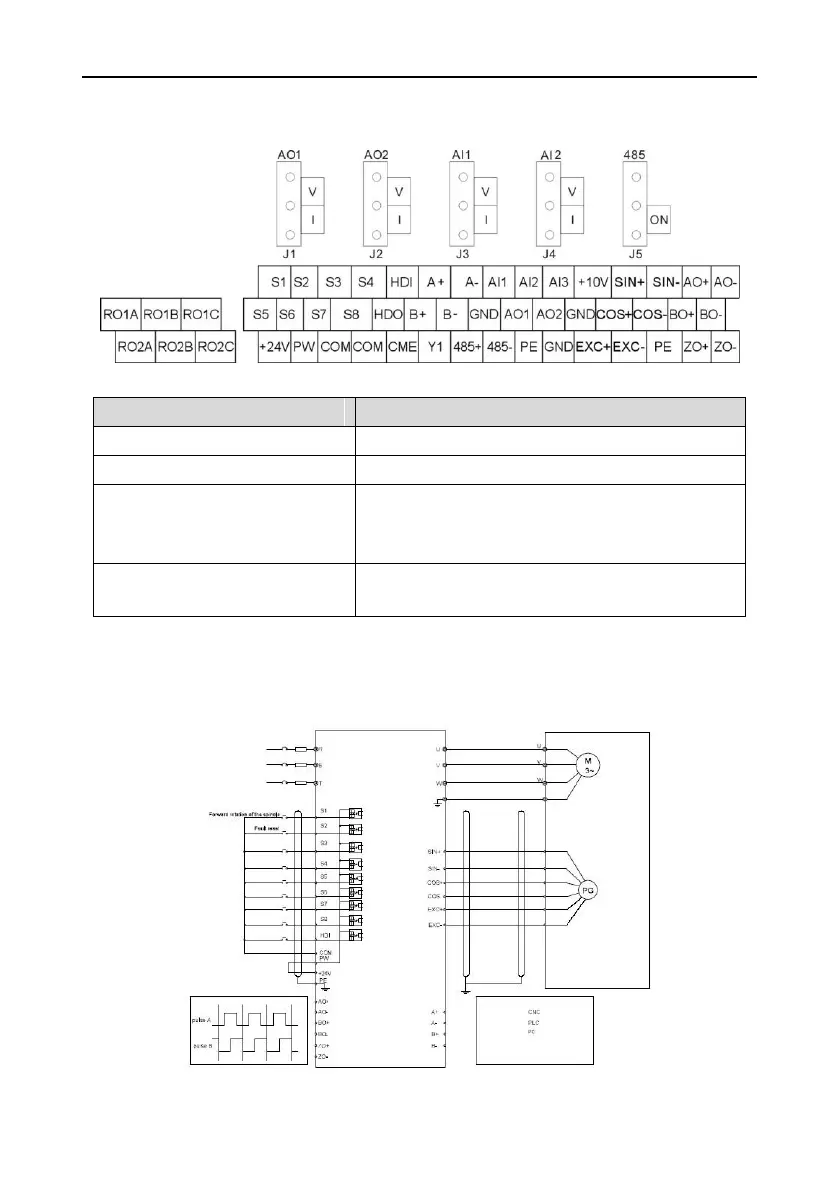

4.4.3 D1 terminal (EC-PG304-05) and the wiring diagram
4.4.3.1 Terminal arrangement
4.4.3.2 The terminal
Terminal
Instruction
EXC+EXC-
Exciting signal
SIN+, SIN- , COS+ and COS-
Signal input
A+, A-, B+, B-
Pulse reference signal, default as 5V input. External
current-limiting resistor is needed when the input
voltage is above 10V
AO+, AO-, BO+, BO-, ZO+, ZO-
Encoder signal output, 5V differential signal and the
ratio of frequency-division is 1:1
Note: refer to section 4.4.1 for detailed information of AO1, AO2, AI1, AI2, 485 and other
terminals.
4.4.3.3 The wiring diagram
