Function
code
Name
Description
Value
Modify
64: Control variable-frequency
circulation motor H
65: Low-temperature pre-alarm
66: Stalling pre-alarm
67: Dry-pumping pre-alarm
P94.36
Contactor closing
delay
0.2–100.0s
0.5s
○
P94.37
Contactor opening
delay
0.2–100.0s
0.5s
○
5.5.16.1 Motor adding or reducing
Motor adding
Output
frequency
t
1 2
3 4 5 6
Run status
RO5
RO6
Motor
connected
to RO5
Motor
connected to
RO5/6
【P94.36】
【P94.20】
【P94.21】 【P94.37】 【P94.36】
Motor adding

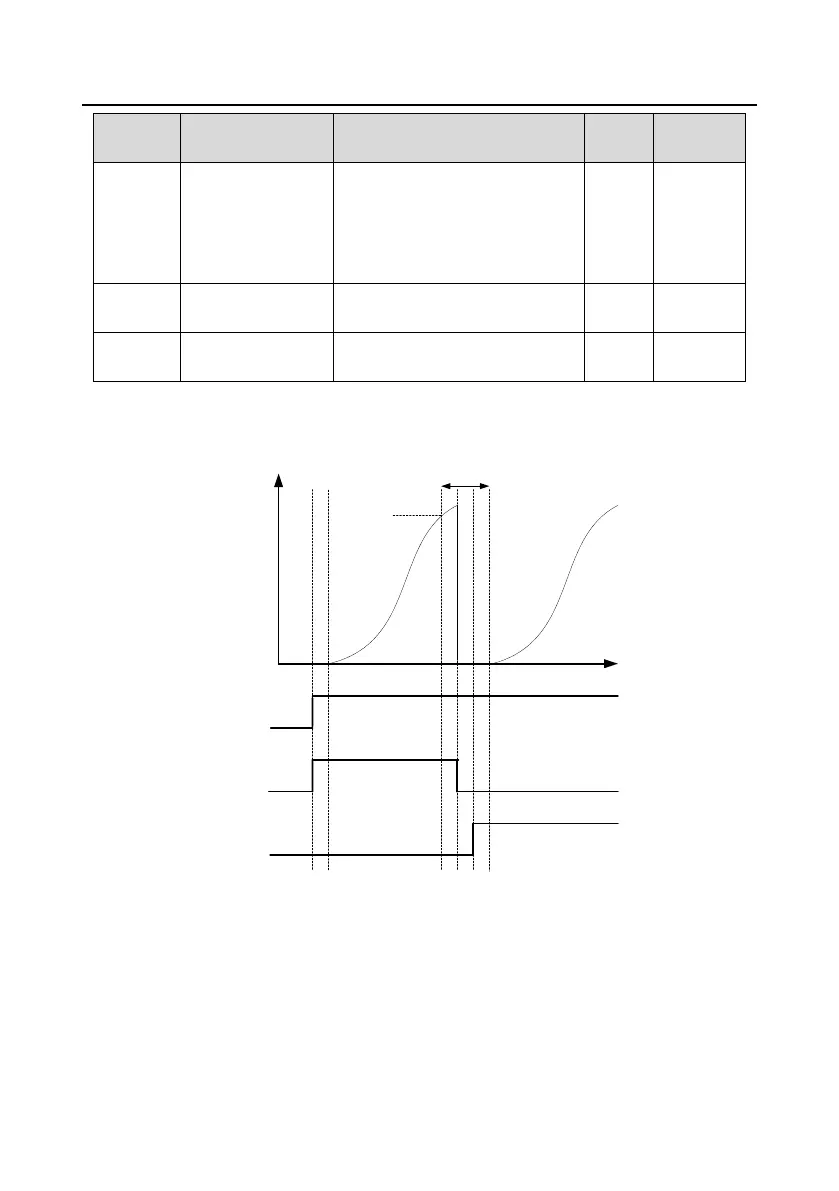

Figure 5-32 Motor adding timing
This figure assumes that the VFD outputs and controls motor M1 and the other motors are in the
stopped state. At this time, if the output frequency is equal to or higher than P94.20 (Running
frequency for motor adding), PID1 feedback is less than the difference between PID1 reference and
P94.19 (Pressure tolerance for motor adding), and this condition lasts a period of time longer than
P94.21 (Motor adding delay), the motor adding function is triggered. Motors are added, and then the
VFD coasts to stop and disconnects the contactor KM1 with the contactor opening delay (P94.37) and
