INVT Goodrive270 Series User Manual

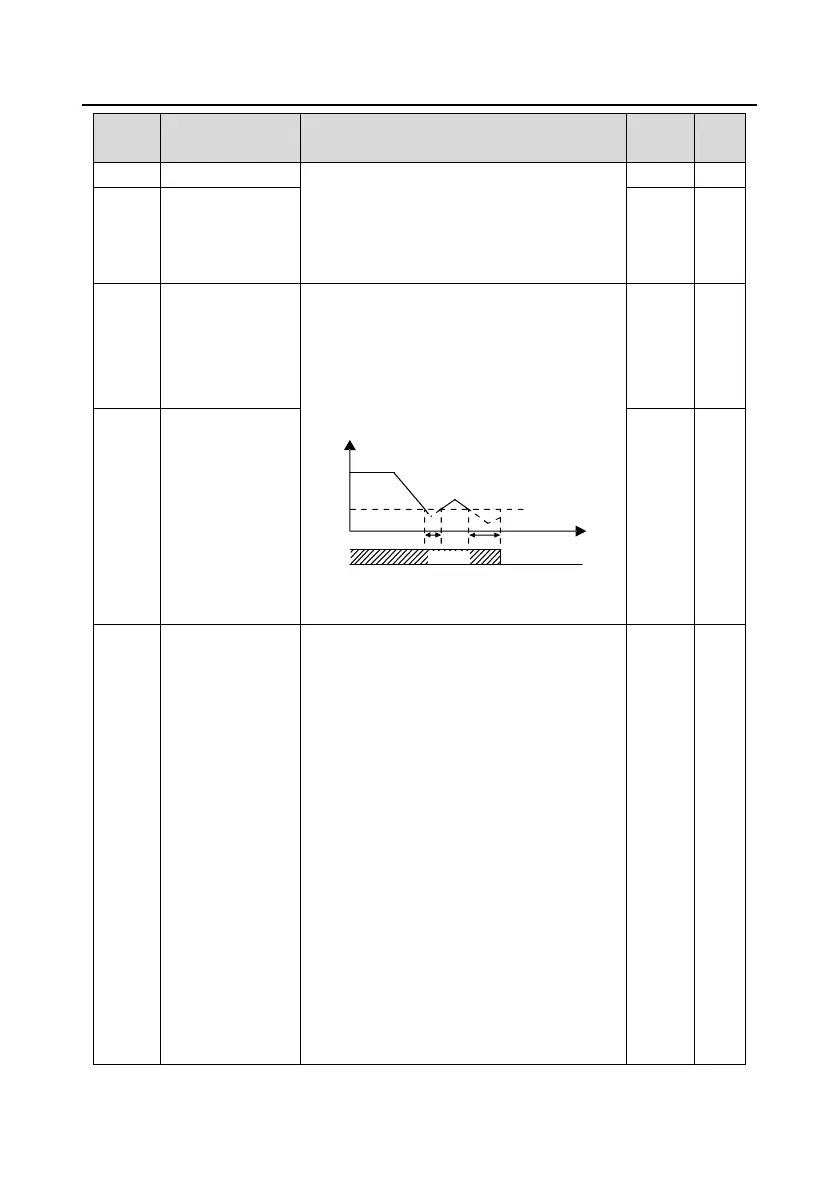

Goodrive270 series VFD for fan and pump Function parameter list
-210-
Function
code
Name
Description
Default
Modify
limit
and lower limits of PID regulator output values.
100.0% corresponds to the max. output
frequency (P00.03) or max. voltage (P04.31).
P09.09 setting range: P09.10––100.0%
P09.10 setting range: -100.0%–P09.09
P09.10
PID output lower
limit
0.0%
○
P09.11
Feedback offline
detection value
Used to set the PID feedback offline detection
value. When the feedback value is smaller than
or equal to the feedback offline detection value,
and the duration exceeds the value specified by
P09.12, the VFD reports "PID feedback offline
fault" and the keypad displays PIDE.
T
Output frequency
t1 t2
P09.11
t1＜T2, so the VFD
continues running
t2=P09.12
Running
Fault output PIDE
PIDE
P09.11 setting range: 0.0–100.0%
P09.12 setting range: 0.0–3600.0s
0.0%
○
P09.12
Feedback offline
detection time
1.0s
○
P09.13
PID control
selection
0x0000–0x1111
Ones place:
0: Continue integral control after the frequency
reaches upper/lower limit
1: Stop integral control after the frequency
reaches upper/lower limit
Tens place:
0: Same as the main reference direction
1: Contrary to the main reference direction
Hundreds place:
0: Limit as per the max. frequency
1: Limit as per A frequency
Thousands place:
0: A+B frequency. ACC/DEC of main reference A
frequency source buffering is invalid.
1: A+B frequency. ACC/DEC of main reference A
frequency source buffering is valid. The
ACC/DEC is determined by P08.04 (ACC time 4).
0x0001
○
