INVT Goodrive270 Series User Manual

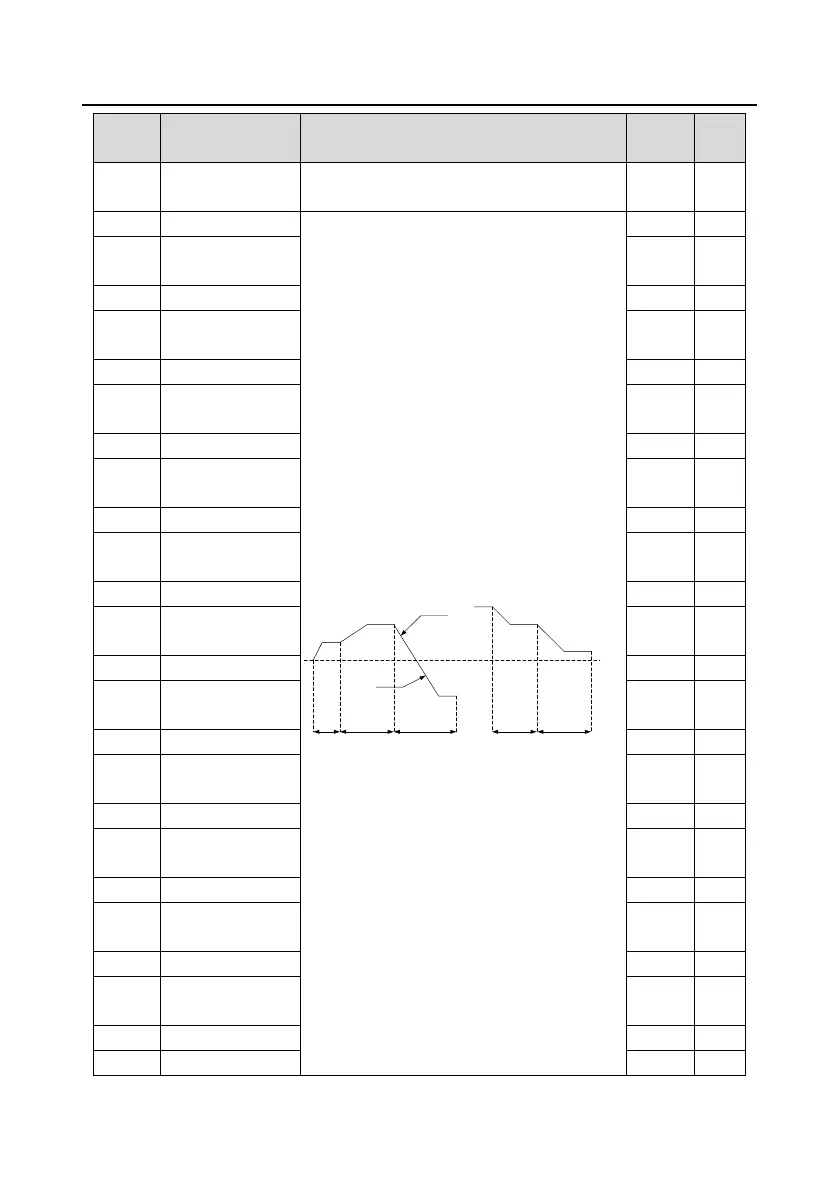

Goodrive270 series VFD for fan and pump Function parameter list
-212-
Function
code
Name
Description
Default
Modify
running stage and running frequency before
power-off.
P10.02
Multi-step speed 0
Frequency setting range for steps from step 0 to
step 15: -100.0–100.0%. 100.0% corresponds to
the max. output frequency P00.03.
Running time setting range for steps from step 0
to step 15: 0.0–6553.5s(min). The time unit is
specified by P10.37.
When simple PLC operation is selected, it is
required to set P10.02–P10.33 to determine the
running frequency and running time of each
step.
Note: The symbol of multi-step speed
determines the running direction of simple PLC,
and the negative value means reverse running.
P10.02
P10.04
P10.06
P10.32
P10.30
P10.28
Deceleration time
(two sections)
Acceleration time
(two sections)
P10.03 P10.05 P10.07 P10.31 P10.33
When selecting multi-step speed running, the
multi-step speed is within the range of
-fmax–fmax, and it can be set continuously. The
start/stop of multi-step stop running is also
determined by P00.01.
The VFD supports the setting of 16-step speed,
which are set by combined codes of multi-step
terminals 1–4 set by S terminals, corresponding
to function code P05.01–P05.06) and
correspond to multi-step speed 0 to multi-step
speed 15.
0.0%
○
P10.03
Running time of
step 0
0.0s
(min)
○
P10.04
Multi-step speed 1
0.0%
○
P10.05
Running time of
step 1
0.0s
(min)
○
P10.06
Multi-step speed 2
0.0%
○
P10.07
Running time of
step 2
0.0s
(min)
○
P10.08
Multi-step speed 3
0.0%
○
P10.09
Running time of
step 3
0.0s
(min)
○
P10.10
Multi-step speed 4
0.0%
○
P10.11
Running time of
step 4
0.0s
(min)
○
P10.12
Multi-step speed 5
0.0%
○
P10.13
Running time of
step 5
0.0s
(min)
○
P10.14
Multi-step speed 6
0.0%
○
P10.15
Running time of
step 6
0.0s
(min)
○
P10.16
Multi-step speed 7
0.0%
○
P10.17
Running time of
step 7
0.0s
(min)
○
P10.18
Multi-step speed 8
0.0%
○
P10.19
Running time of
step 8
0.0s
(min)
○
P10.20
Multi-step speed 9
0.0%
○
P10.21
Running time of
step 9
0.0s
(min)
○
P10.22
Multi-step speed 10
0.0%
○
P10.23
Running time of
step 10
0.0s
(min)
○
P10.24
Multi-step speed 11
0.0%
○
P10.25
Running time of
0.0s
○
