Goodrive270 series VFD for fan and pump Installation guidelines
-26-

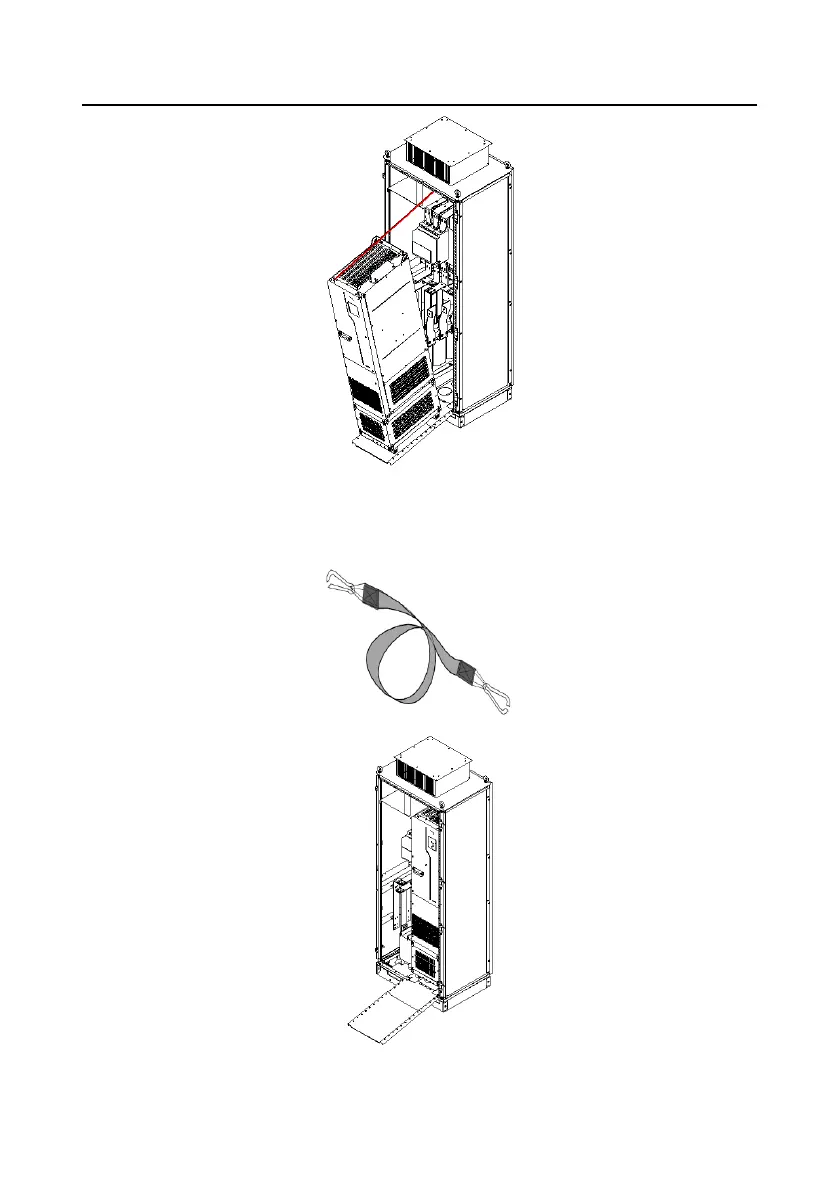

Figure 4-16 Pushing the VFD into the cabinet slowly
Note: Since the VFD barycenter is too high, use the auxiliary rope for mounting to prevent the VFD
from rollover during the push-in or push-out. See the following figure.
Figure 4-17 VFD already in the cabinet
