Goodrive270 series VFD for fan and pump Installation guidelines
-25-

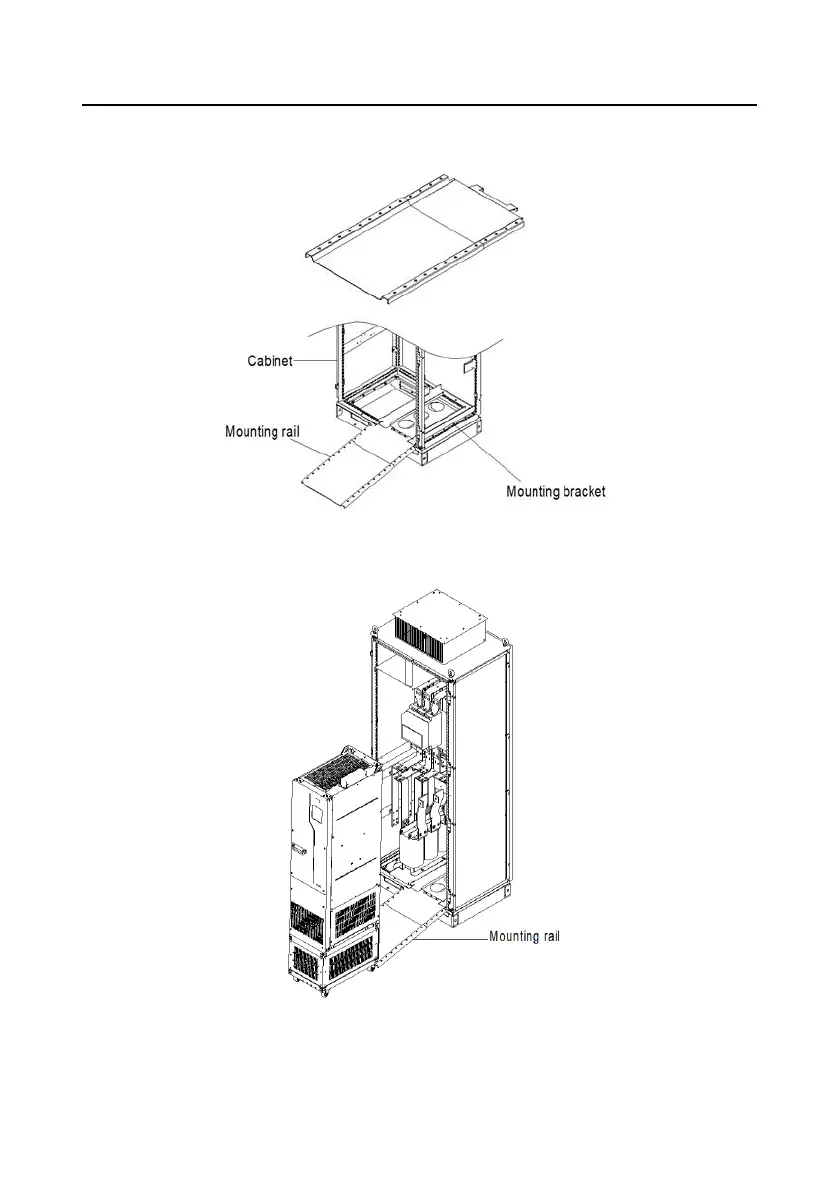

As shown in Figure 4-14, assemble the mounting rail, align the two front hooks with the nine-fold
profile notch, and snap them into place.
Figure 4-14 Mounting rail
4. Push the VFD into the cabinet.
Figure 4-15 Aligning the VFD casters with the mounting rail
