INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Installation guidelines
-24-

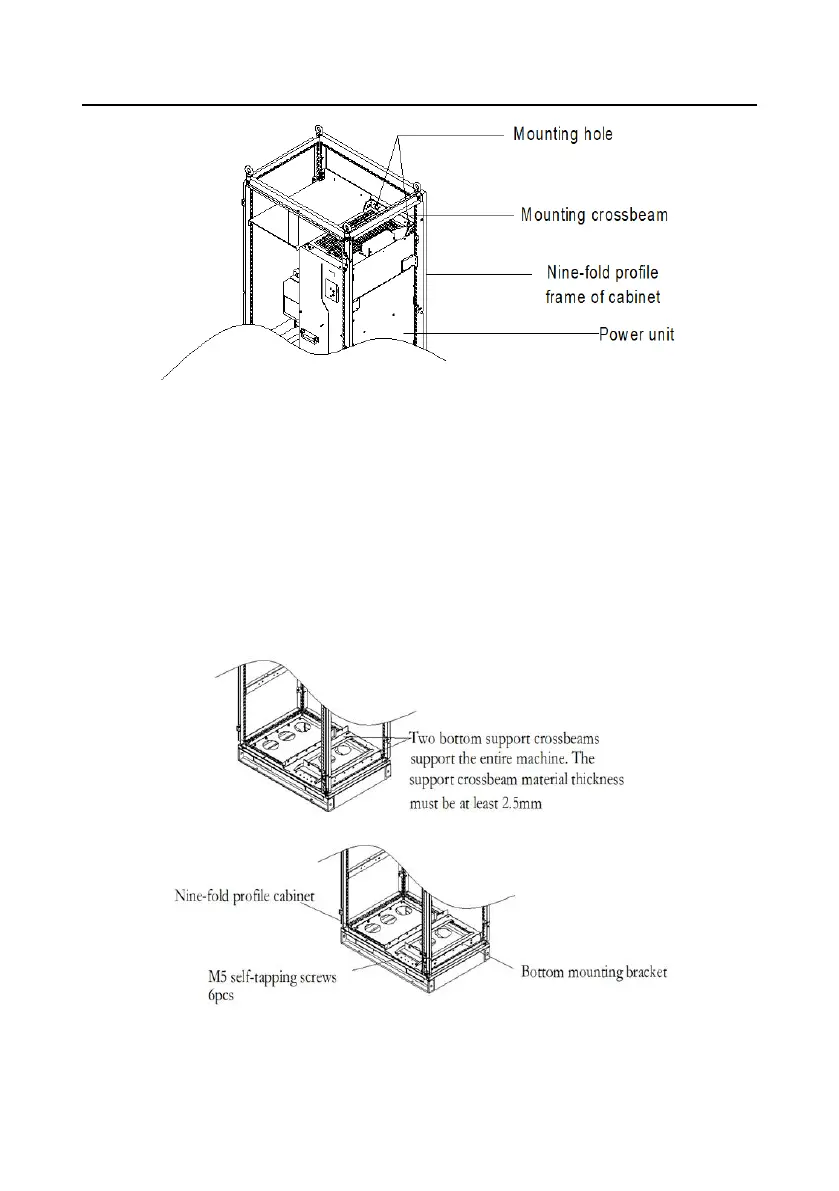

Figure 4-12 Three-dimension view of mounting a GD270 280–500kW VFD in a cabinet
2. Fix the bottom support crossbeams and mounting bracket. (See Figure 4-13.)
(1) Use eight M8 cage nuts to fix the two bottom support crossbeams to the base of the nine-fold
profile cabinet frame. (The support crossbeams are user designed, T≥2.5mm, firmly installed.)
(2) Fix the mounting bracket to the nine-fold profile cabinet frame base with six M5 self-tapping
screws, as shown in the following figure. For details about mounting bracket dimensions, see
Figure C-15 and Table C-8.
(3) If you use another type of cabinet but not nine-fold profile cabinet, the fixing holes for the
mounting bracket need to be drilled and assembled on site.
Figure 4-13 Bottom bracket mounting
3. Assemble the mounting rail (optional part).
