INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Function description
-27-
Function
code
Name
Description
Default
Modify
P02.26
Overload protection
of motor 1
0: No protection
1: Common motor (with low-speed
compensation)
2: Frequency-variable motor (without
low-speed compensation)
2
◎
P02.27
Overload protection
coefficient of motor
1

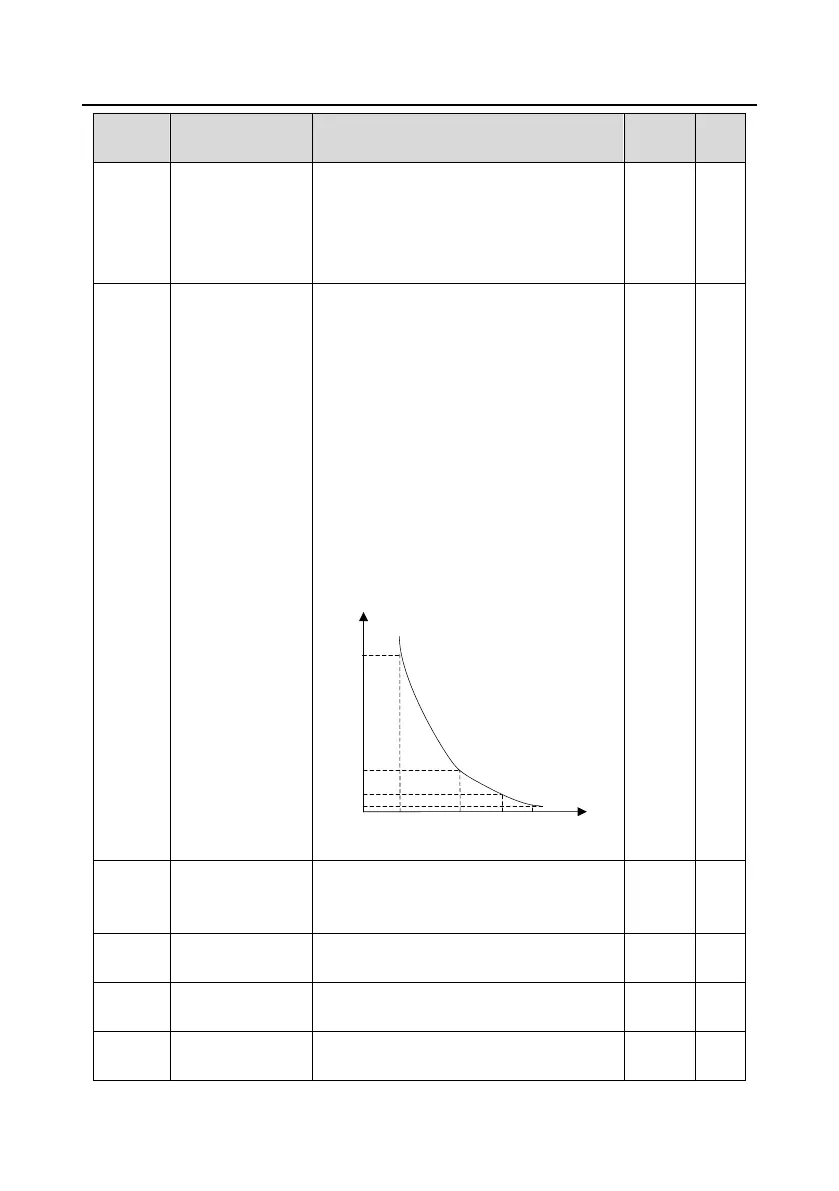

Motor overload multiples M=Iout/(In*K)
“In” is rated motor current, “Iout” is inverter
output current, “K” is motor overload
protection coefficient.
A smaller value of “K” indicates a bigger value
of “M”.
When M=116%, protection is performed after
motor overload lasts for 1 hour; when
M=150%, protection is performed after motor
overload lasts for 12 minutes; when M=200%,
protection is performed after motor overload
lasts for 60 seconds; and when M≥400%,
protection is performed immediately.
1
5
12
60
116%
200%
Time(min)
Motor overload
multiple
150% 180%
Setting range: 20.0%–120.0%
100.0%
○
P02.28
Power calibration
coefficient of motor
1
0.00–3.00
1.00
○
P02.29
Parameter display
of motor 1
0: Display based on motor type
1: Display all
0
○
P03.00
Speed-loop
proportional gain 1
0–200.0
20.0
○
P03.01
Speed-loop integral
time 1
0.000–10.000s
0.200s
○
