INVT Goodrive300-21 Series - Specifications

Goodrive300-21 integrated machine for air compressor Optional parts
-88-
B.2.2 Specifications
The adapter must be installed properly to achieve the designed function. Generally, the installation
must be done under the guidance of our certified and qualified engineers.
Note: Do not install the adpater with the power on.
 The outline dimension of the IP00 (without housing) model is as follows (unit: mm):
GPRS
GPS

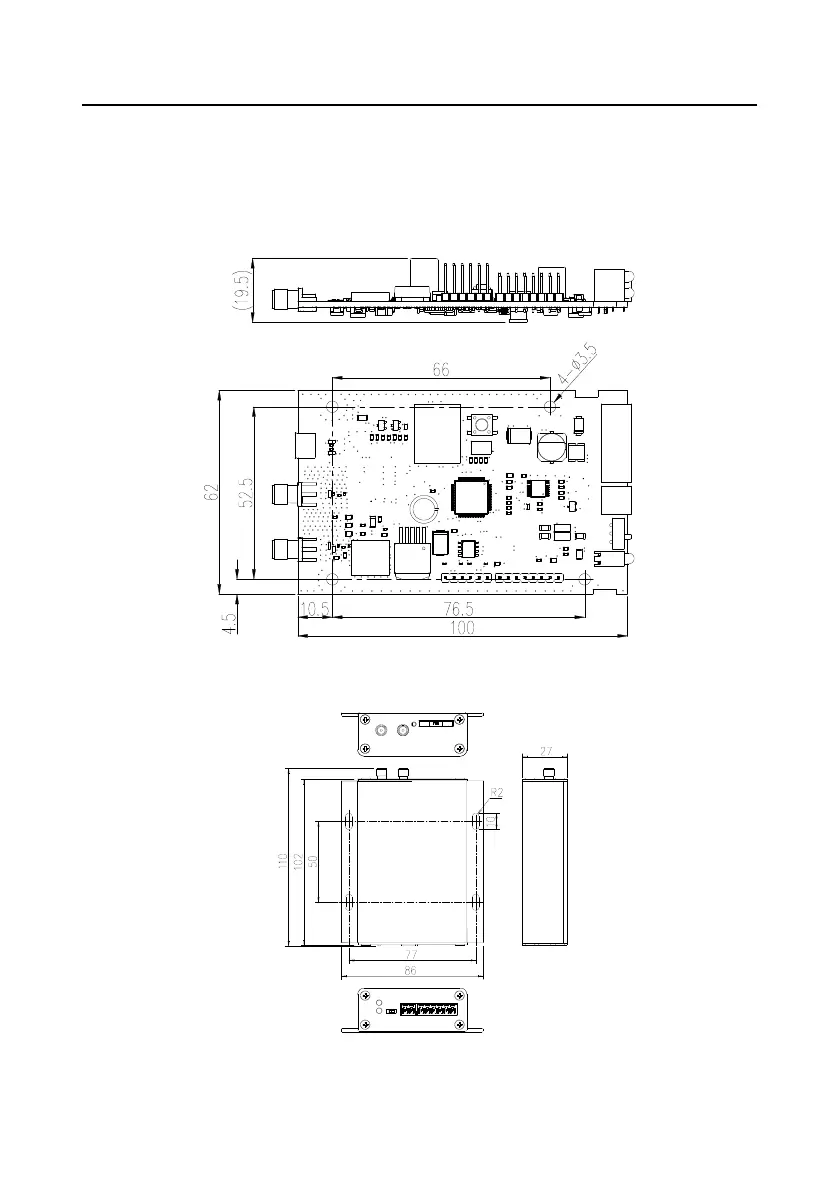

Figure B-7 Outline dimension for IP00 model
 The outline dimension of the IP20 (wall-mounted housing) model is as follows (unit: mm):
Figure B-8 Outline dimension for IP20 model (wall-mounted housing)
