B.4 Floor installation pedestal
B.4.1 Package list
The default installation mode is wall mounting. If floor mounting is needed, users can install the
pedestal for floor mounting. The package list is shown as below:
Name
Model
Qty.
Remark
Combination screw
M5×10
4
220V 7.5–18.5kW
380V 15–37kW
M8×16
220V 22–45kW
380V 45–90kW
Pedestal
278×170×180
1
220V 7.5–11kW
380V 15–22kW
328×190×180
220V 15–18.5kW
380V 30–37kW
404×250×240
220V 22–45kW
380V 45–90kW
Note:
1. For detailed dimension drawings, see 0 and A.3.
2. If users select pedestal by themselves, please note that the ventilation hole size of the pedestal
should be no less than 1.2 times of the ventilation hole size at the bottom of integrated
machine.

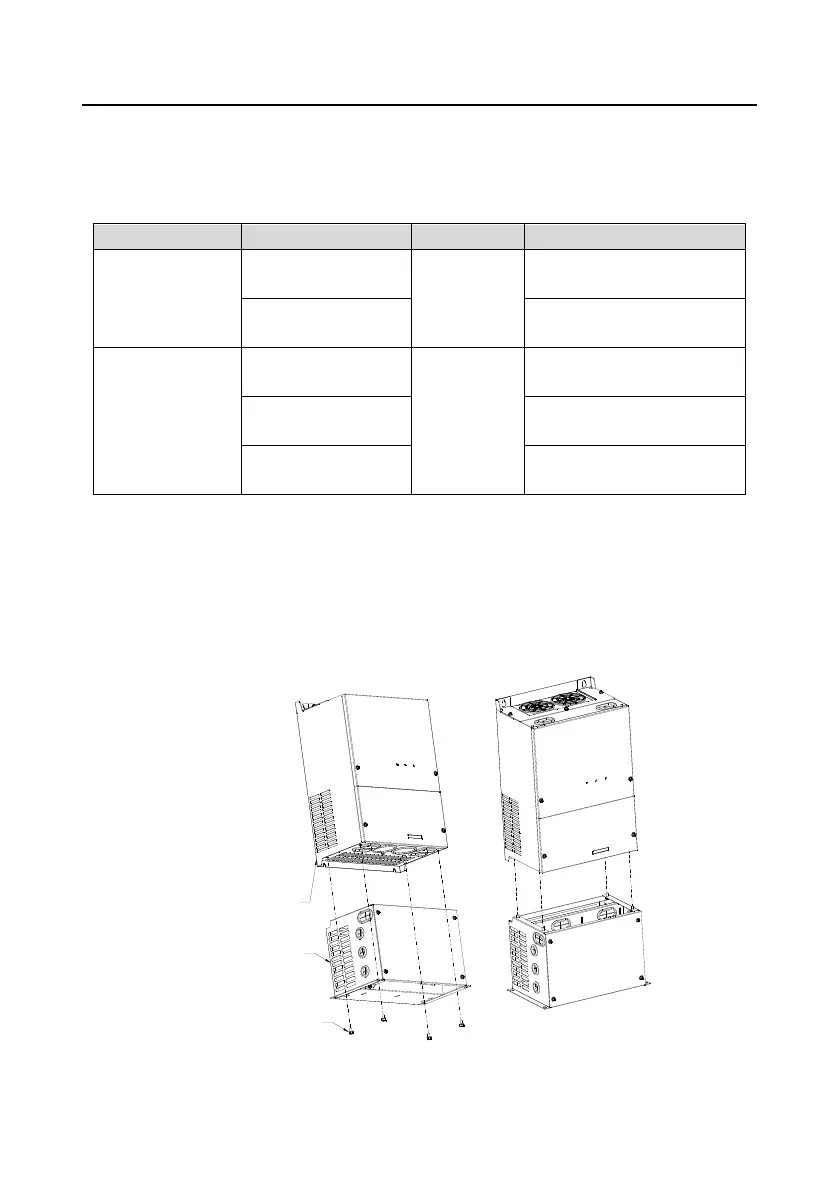

B.4.2 Installation diagram of the pedestal
Integrated
machine
Pedestal
Combination
screw
Figure B-11 Installation diagram of the pedestal
