INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Product dimension
-78-
Table A-2 Dimensions for 220V 22–45kW/380V 45–90kW (unit: mm)
Model
W1
W2
W3
H1
H2
H3
D1
Installation
hole
diameter
Screw
specification
220V 22–45kW
370
220
330
590
572
9
250
9
M8
380V 45–90kW

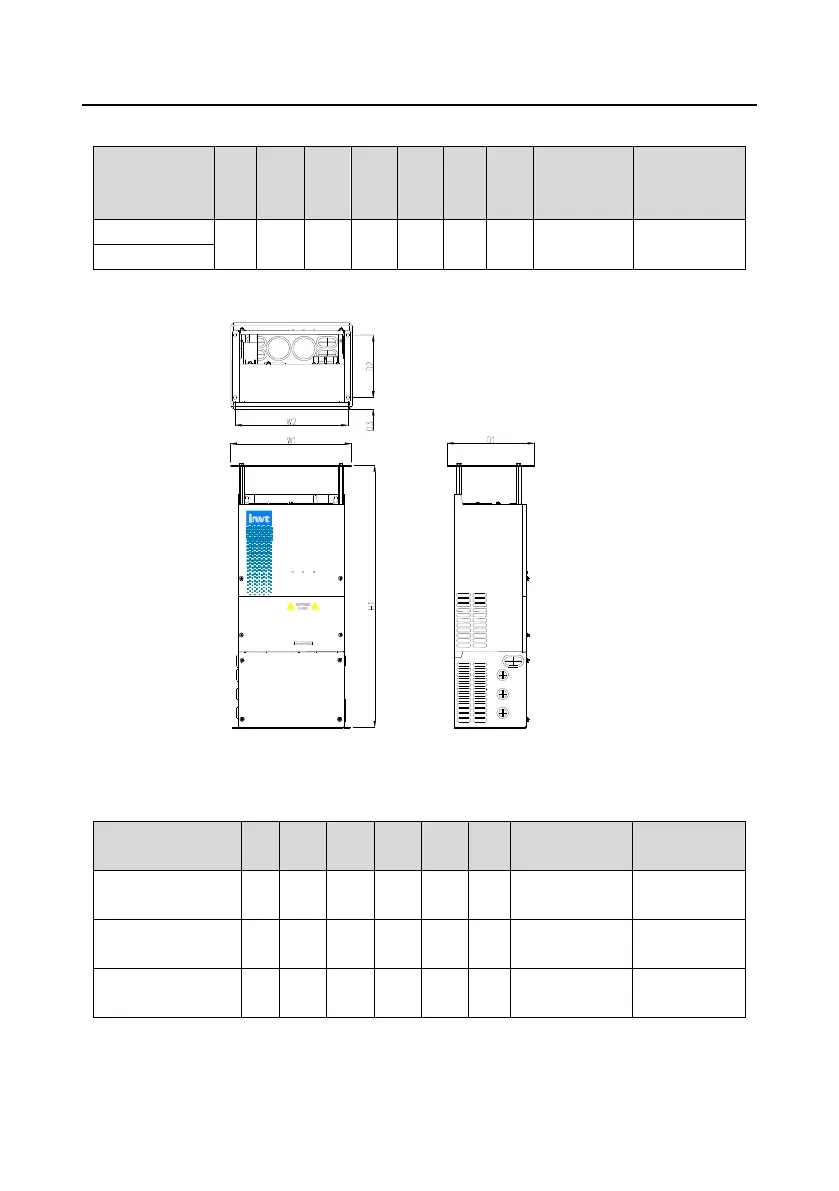

A.2 Floor-mounting dimensions (with top cover)
Bottom view
Front view
Leftside view
POWER
RUN FAULT
Figure A-3 Diagram for 220V 7.5–45kW/380V 15–90kW
Table A-3 Dimensions for 220V 7.5–45kW/380V 15–90kW (unit: mm)
Model
W1
W2
H1
D1
D2
D3
Installation hole
diameter
Screw
specification
220V 7.5–11kW
380V 15–22kW
285
265
623
205
148
28
6
M5
220V 15–18.5kW
380V 30–37kW
335
315
682
225
158
33
6
M5
220V 22–45kW
380V 45–90kW
405
388
884
285
160
65
9
M8
Note: Top cover must be selected together with the pedestal, namely floor mounting (with top cover).
Wall mounting will be unavailable when installing with the top cover.
