Goodrive300-21 integrated machine for air compressor Optional parts
-93-
B.4.4 Floor wiring process
With an optional pedestal added at the bottom, the device can be mounted on the floor instead of a
wall.
Control cableControl cable
Main motor cooling
fan cable
Connection cable of
optional parts
The cable goes through the
through-hole on the left and
right side to the back of
pedestal
AC power cable
Main motor cable
Fan cable

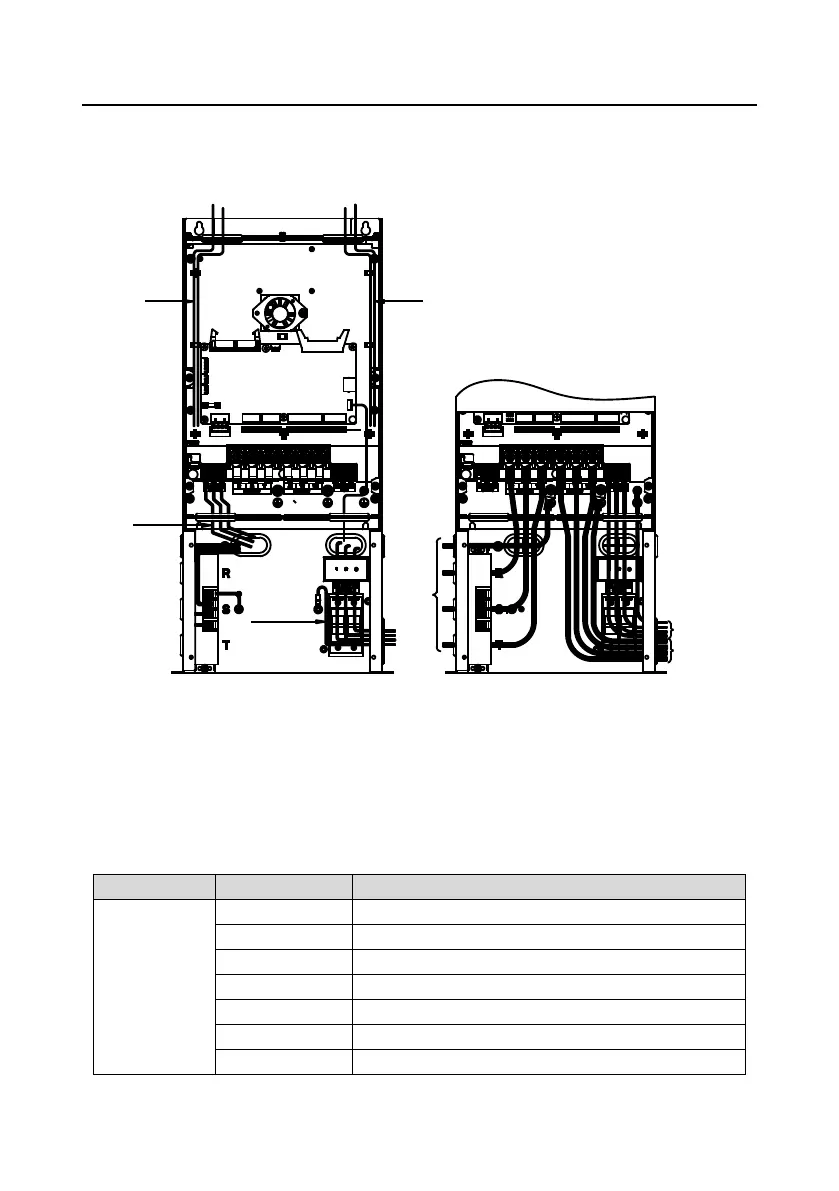

Figure B-14 Wiring diagram of control circuit and main circuit
Note: If the optional parts are not installed on the pedestal, the cable length may be inappropriate.
Users can make cables based on actual conditions.
B.5 TC070A touch screen
B.5.1 Product specifications
Table B-1 Product specifications
4-wire industrial resistance touch screen
