Goodrive300-21 integrated machine for air compressor Optional parts
-98-
B.5.5 Installation dimensions and description
B.5.5.1 Touch screen installation dimensions
203.9±0.5
102
144.9±0.5
65.5
190.8±0.5
13.1
71.4±0.5
33.8±0.3
7.3±0.3
137±0.5
Embedded
installation
Snap-fit
fastening
position
4 in total

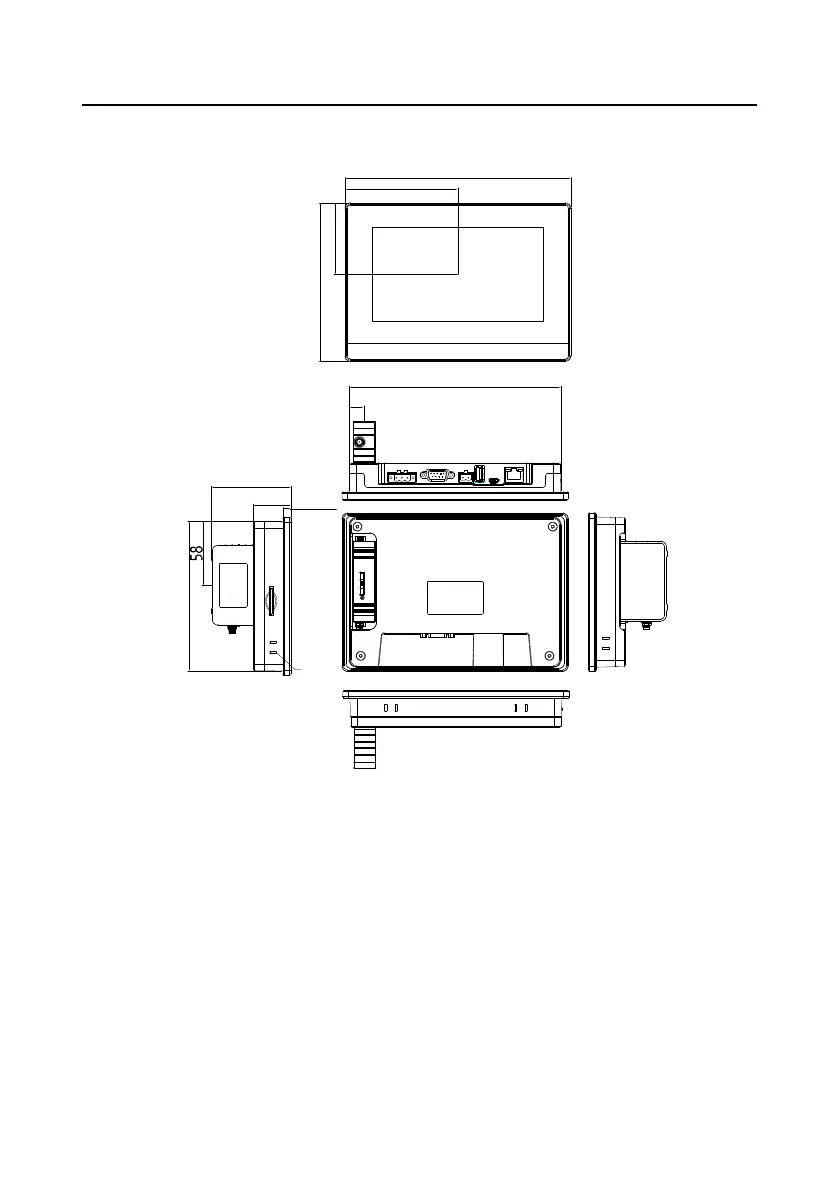

Figure B-19 Touch screen installation dimensions (unit: mm)
B.5.5.2 Cut-out installation description
When you want to mount the touch screen into the operation panel of the control cabinet, use the
cross screwdriver and metal installation snap-fit. The installation procedure is as follows:
Step 1 Cut a rectangular installation groove on the operation panel of the control cabinet according
to the cut-out dimensions, and then insert the touch screen from the front of the operation
panel.
