INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Installation guidance
-5-
2 Installation guidance
2.1 Wiring and terminal instruction of main circuit
2.1.1 Wiring diagram of the main circuit
R
S
T
U1
V1
W1
U2
V2
W2
Goodrive300-21
Master
Fan

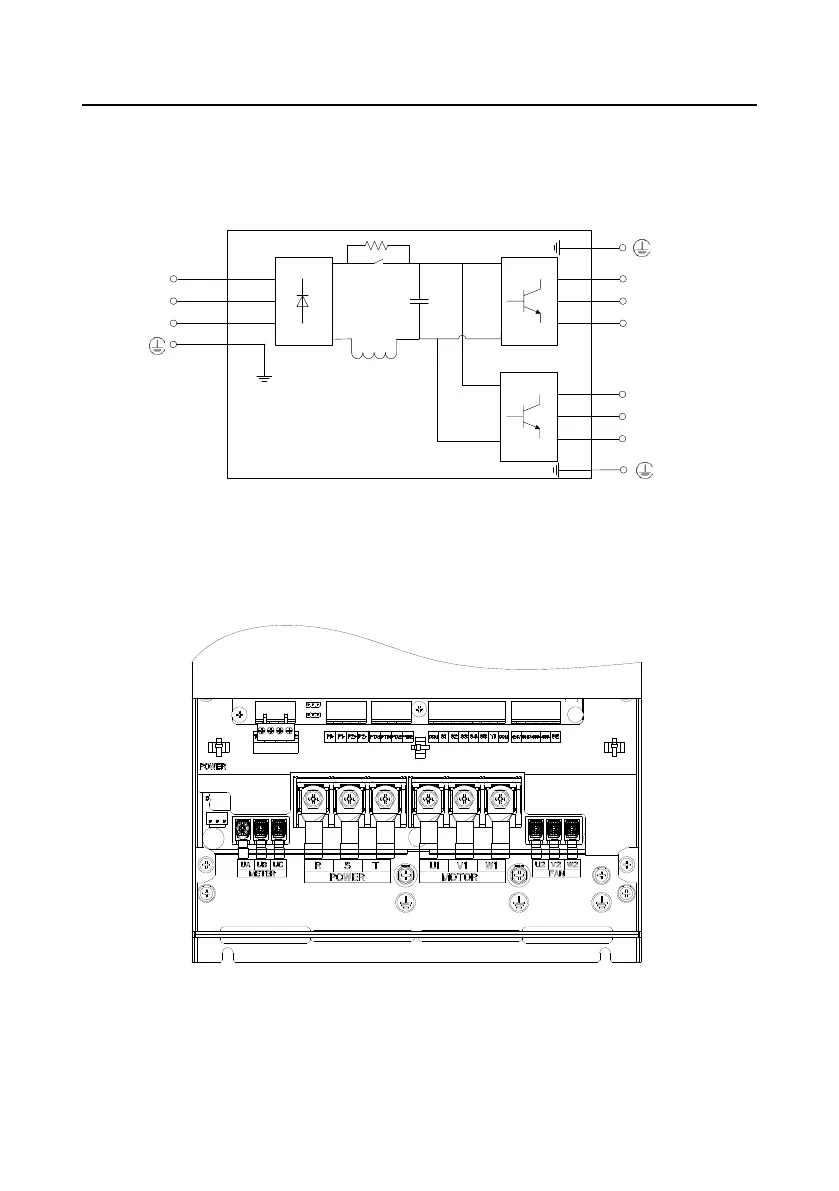

Figure 2-1 Wiring diagram of the main circuit
2.1.2 Terminal diagram of the main circuit
The terminal layout of 15–22kW, 30kW–37kW and 45–90kW main circuit slightly differs from each
other. In below figure, 15–22kW and 45–90kW models are taken as examples for terminal layout.
Figure 2-2 AC380V 15–22kW
