INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Function description
-61-
Function
code
Name
Description
Default
Modify
1: Negative sequence
2: R-phase loss
3: S-phase loss
4: T-phase loss

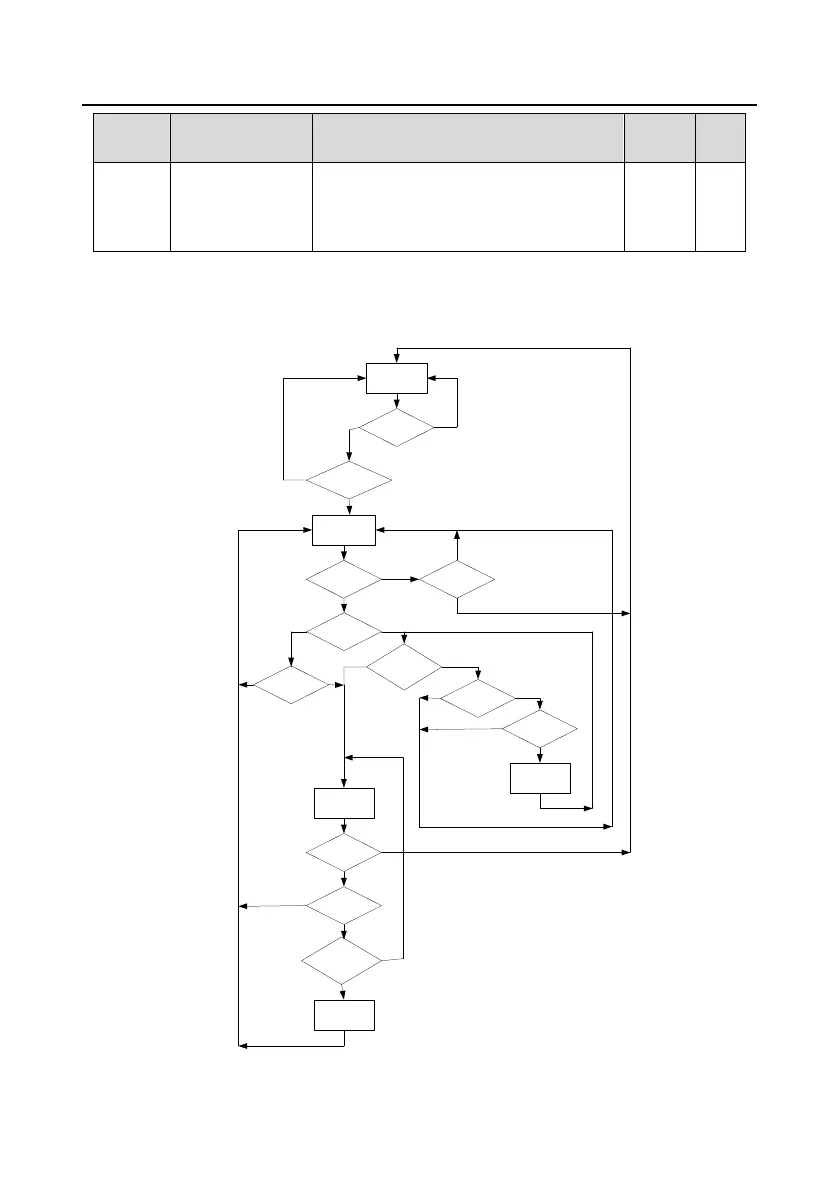

5.2 Air compressor control logic
(1) The control logic of air compressor is shown as below:
Stand-by
No-load running
Loading running
Unloading
running
Sleep
Loading delay
P18.15 is passed
Current pressure
is above unloading
pressure P18.05
Stop command
Sleep enable
P18.01
Current pressure
is below loading
pressure P18.06
Stop command
Restart delay
P18.16 is passed
Starting
command
The first loading
after starting
E-stop command
Yes No
NoYes
No
Yes
No
Yes
No
Yes
NoYes
No
Yes
No
Yes
No
Yes
No
Yes
Stop delay
P18.14 is passed
Yes
No
No-load delay
P18.13 is passed
No Yes
