INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Optional parts
-90-
Name
Model
Qty.
Remark
Hex-head stud
M5×101
4
220V 7.5–11kW,
380V 15–22kW
M5×110
4
220V 15–18.5kW
380V 30–37kW
M5×110
4
220V 22–45kW
380V 45–90kW
Combination screw
M5×10
4
220V 7.5–11kW
380V 15–22kW
M4×10
4
220V 15–18.5kW
380V 30–37kW
M4×10
4
220V 22–45kW
380V 45–90kW
Top cover
285×205
1
220V 7.5–11kW
380V 15–22kW
335×225
1
220V 15–18.5kW
380V 30–37kW
405×285
1
220V 22–45kW
380V 45–90kW
Note:
1. For detailed dimension drawings, see A.2 Floor-mounting dimensions (with top cover).
2. If users select top cover by themselves, please note that the distance between top cover and
the fan should be no less than 110mm, otherwise cooling performance may be impacted.

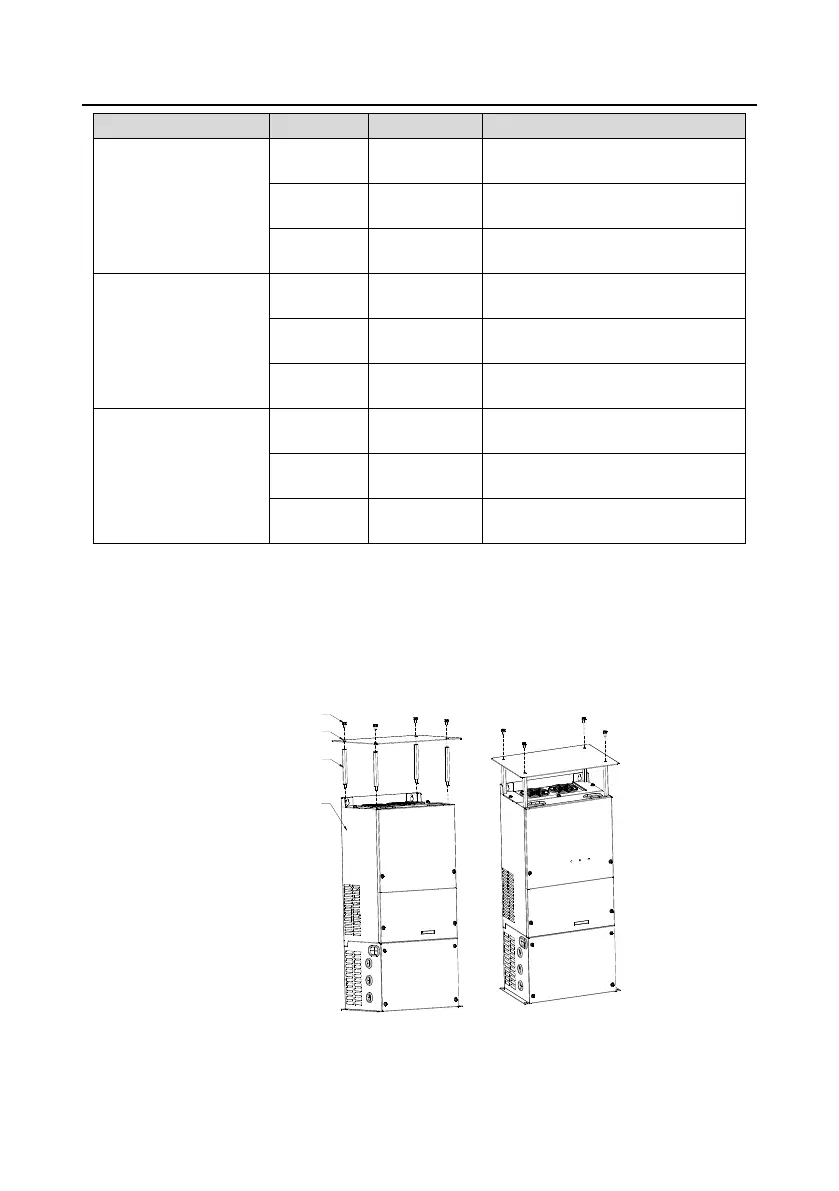

B.3.1 Installation of drip-proof top cover
Combination
screw
Top cover board
Hex stud
Integrated
machine
Installation diagram for
optional top cover
Figure B-10 Installation diagram of drip-proof top cover
