Goodrive300-21 integrated machine for air compressor Optional parts
-95-
Table B-2 Touch screen ordering description
Includes the RS485 communication cable, 24V
power cable, and emergency stop cable, each of
which is 2.5-meter long.
Communication function
module
Communication mode GPRS, plug directly
Note: Users can choose the optional INVT ICA200 series IoT module. For details, refer to section 0.

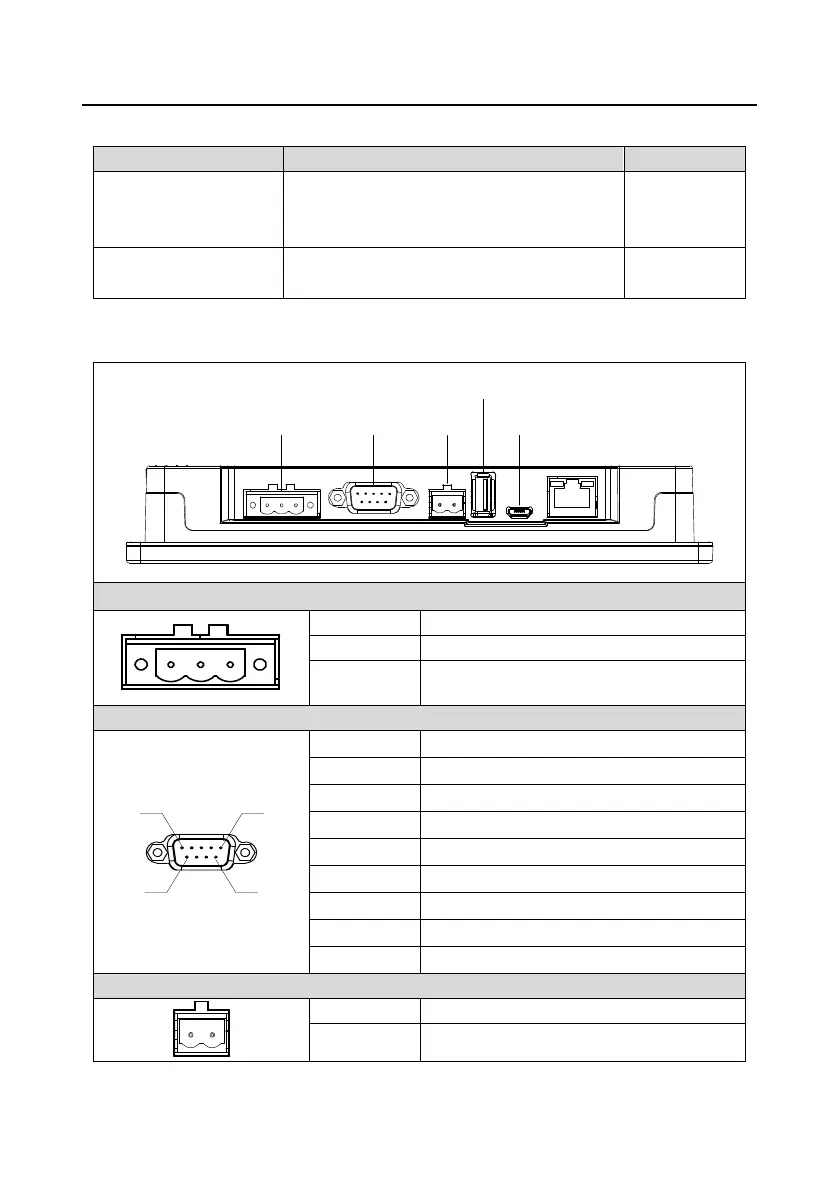

B.5.2 Connection terminals
Power supply
terminals
DB9 serial port
RS485 serial
port
USB Host
USB Slave
Power supply terminals (Pins 1–3, from left to right)
DB9 serial port terminals
RS485 terminals (Pins 1–2, from left to right)
